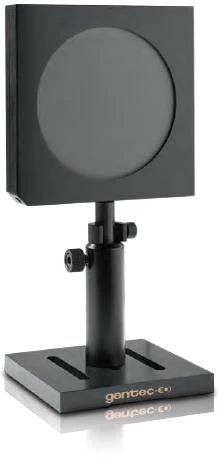

Thumbnail of Gentec-EO - Energy Detector - Attenuator - QE95LP-H-MB-QED photo 1

Description

Gentec-EO offers QE95 series energy detectors for pulse energy measurements of up to 250J in a wide spectral range with an attenuator and 70J - without attenuator.

Gentec-EO - Energy Detector - Attenuator - QE95LP-H-MB-QED

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 250000 mJ
Max Repetition Rate: 40 Hz
Effective Aperture: 95 mm
Spectral Range: 0.3 – 2.1 um
Damage Threshold (Max Power): 90 W

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MODULAR CONCEPT: Increase the power capability of your detector: 2 different cooling modules
  • EXTRA LARGE APERTURE: Effective aperture of 95 mm Ø
  • QED ATTENUATOR AVAILABLE: Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength.
  • LOW NOISE LEVEL: 15 μJ for the MB coating
  • TEST TARGET INCLUDED: With the MB models
  • SMART INTERFACE: Containing all the calibration data

Applications

Pulsed high power laser energy measurements in a wide spectral range:

  • 190nm - 20um (no attenuator)
  • Spectroscopy

Frequently Asked Questions

What is the maximum pulse energy that the Gentec-EO QE95 series energy detector can measure?
The Gentec-EO QE95 series energy detector can measure pulse energy of up to 250J with an attenuator and 70J without an attenuator.
What is the effective aperture of the Gentec-EO QE95 series energy detector?
The effective aperture of the Gentec-EO QE95 series energy detector is 95 mm Ø.
What is the QED attenuator available for the Gentec-EO QE95 series energy detector?
The QED attenuator available for the Gentec-EO QE95 series energy detector allows you to measure up to 5X higher energies and is available with optional calibration for all wavelengths between 532 & 1064 nm, or single wavelength.
What is the noise level of the MB coating on the Gentec-EO QE95 series energy detector?
The noise level of the MB coating on the Gentec-EO QE95 series energy detector is 15 μJ.
What applications is the Gentec-EO QE95 series energy detector suitable for?
The Gentec-EO QE95 series energy detector is suitable for pulsed high power laser energy measurements in a wide spectral range of 190nm - 20um (no attenuator) and spectroscopy.

Got more questions? Use the inquiry form to ask the supplier directly.
