Description

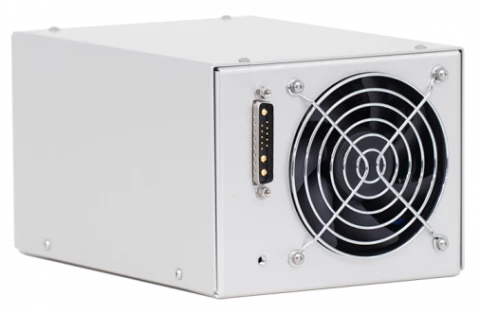

FLD-mini flashlamp driver is a miniature all-in-one device specially designed to drive solid-state lasers like flashlamp pumped Nd:YAG.
It forms quasi-rectangular pulses on a flashlamp (using energy stored in internal capacitor bank) and provides simmer current during the interval between pulses. Module includes IGBT, its driver, protective circuits, simmer and trigger circuits, discharge resistors and controls. It also contains a fan for active cooling.
Two different operating modes are possible:
internal synchronisation mode, when the flashlamp operating frequency and pulse duration, as well as output voltage level can be programmed in working range by user through RS-232 (RS-485 is available on request);
external synchronisation mode, when pulse duration, as well as output voltage level can be programmed by user through RS-232, but an external pulse generator sets operating frequency of the flashlamp.
Please, check other our products, like discharge circuits, simmer supplies, capacitor chargers and FLD-kit - set of modules, which could be combined into a 1 kW to 4 kW (up to 8 kW on request) power supply for a pulsed flashlamp.
FLD-Mini Flashlamp Driver
Specifications
Input Voltage: | 24 VDC |
---|---|
Maximal Output Power: | 300 W |
Maximal Output Voltage: | 450 V (base version), 500 V (on request) |
Embedded Capacitor Bank: | 2 mF |
Maximal Discharge Current: | 500 A |
Maximal Average Power: | 300 W |
Current Consumption: | 17 A max |
Pulse Width: | 50 us - 1000 us |
Maximal Repetition Rate: | 1-30 Hz |
Features
- 24VDC input
- Maximum output power – 300W
- Maximum output voltage – 450V (500V on request)
- Embedded 2mF capacitor bank
- Flashlamp triggering and simmering circuits
- RS-232 machine interface (RS-485 on request)
Applications
Nd:YAG pumping and similar applications
