Description

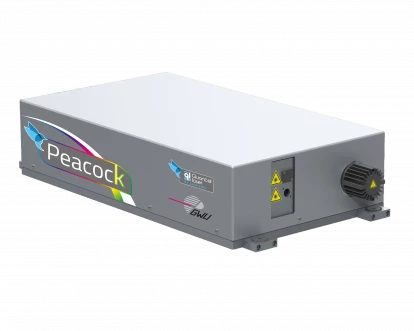

The Peacock 532 is a tunable pulsed nanosecond laser source from 680 nm to 2,2 µm. It includes a compact and rugged CFR‐type Nd:YAG laser pumping a state‐of‐the‐art OPO. The whole unit is integrated on a single bench, which can easily be inserted into a complex system. It shows outstanding versatility thanks to a fully automated wavelength selection, real‐time output energy control or laser beam shaping capability.
For more information
Peacock 532 (680 nm – 2,2 µm)
Specifications
| Total Tuning Range: | 680 – 2200 nm |
|---|---|
| Core Tuning Range: | 680 – 980 nm |
| Pulse Energy: | 35 mJ |
| Repetition Rate: | 30 Hz |
| Signal Polarization: | N/A |
| Idler Polarization: | N/A |
| Pulse Duration: | < 9 ns |
| Beam Diameter: | 6 nm |
| Linewidth @ 725 Nm: | < 3 nm |
| Beam Delivery: | Customer defined fiber coupled or free space |
Download Data Sheet
Features
- Compact, integrated Nd:YAG-OPO platform
- Designed for easy integration
- Up to 30 Hz
- Real-time analog OPO energy monitor output
- Fully automated for hands-free operation
- User defined fiber-delivery or free-space output
Applications
- MEDICAL & BIOTECHNOLOGY
- SPECTROSCOPY
- REMOTE SENSING
- PHOTOACOUSTIC IMAGING
- LiDAR
Frequently Asked Questions
What is the wavelength range of the Peacock 532 laser?
The Peacock 532 laser has a wavelength range from 680 nm to 2,2 µm.
What are the main features of the Peacock 532 laser?
The main features of the Peacock 532 laser include compact and integrated design, easy integration, real-time analog OPO energy monitor output, and fully automated operation.
What are the main applications of the Peacock 532 laser?
The main applications of the Peacock 532 laser include medical and biotechnology, spectroscopy, remote sensing, photoacoustic imaging, and LiDAR.
Can the Peacock 532 laser be used for fiber-delivery or free-space output?
Yes, the Peacock 532 laser can be used for both fiber-delivery and free-space output, depending on the user's preference.
What is the peak energy of the Peacock 532 laser at 725 nm?
The peak energy of the Peacock 532 laser at 725 nm is 35 mJ.
