Description

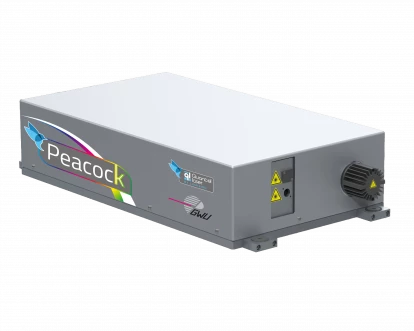

The Peacock 532 is a tunable pulsed nanosecond laser source from 680 nm to 2,2 µm. It includes a compact and rugged CFR‐type Nd:YAG laser pumping a state‐of‐the‐art OPO. The whole unit is integrated on a single bench, which can easily be inserted into a complex system. It shows outstanding versatility thanks to a fully automated wavelength selection, real‐time output energy control or laser beam shaping capability.
Peacock 532
Specifications
| Total Tuning Range: | 680 – 2200 nm |
|---|---|
| Core Tuning Range: | 680 – 980 nm |
| Pulse Energy: | 35 mJ |
| Repetition Rate: | 30 Hz |
| Signal Polarization: | N/A |
| Idler Polarization: | N/A |
| Pulse Duration: | < 9 ns |
| Beam Diameter: | 6 nm |
| Linewidth @ 725 Nm: | < 3 nm |
Download Data Sheet
Features
- Compact, integrated Nd:YAG-OPO platform
- Designed for easy integration
- Up to 30 Hz
- Real-time analog OPO energy monitor output
- Fully automated for hands-free operation
- User defined fiber-delivery or free-space output
Applications
- MEDICAL & BIOTECHNOLOGY
- SPECTROSCOPY
- REMOTE SENSING
- PHOTOACOUSTIC IMAGING
- LiDAR
Frequently Asked Questions
What is the wavelength range of the Peacock 532 laser?
The Peacock 532 laser has a tunable wavelength range from 680 nm to 2,2 µm.
What are the main features of the Peacock 532 laser?
The main features of the Peacock 532 laser include a compact and rugged design, real-time analog OPO energy monitor output, and fully automated hands-free operation.
What are the main applications of the Peacock 532 laser?
The main applications of the Peacock 532 laser include medical and biotechnology, spectroscopy, remote sensing, photoacoustic imaging, and LiDAR.
Can the Peacock 532 laser be integrated into a complex system?
Yes, the Peacock 532 laser can easily be inserted into a complex system due to its compact and integrated design.
What is the peak energy of the Peacock 532 laser at 725 nm?
The peak energy of the Peacock 532 laser at 725 nm is 35 mJ.
