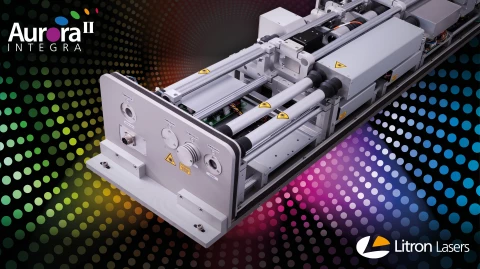

Aurora II 65-10 - Integrated OPO and Nd:YAG pump laser

Specifications

Total Tuning Range: 205 – 2300 nm
Core Tuning Range: 410 – 710 nm
Pulse Energy: 65 mJ
Repetition Rate: 10 Hz
Signal Polarization: Vertical
Idler Polarization: Horizontal
Document icon Download Data Sheet Download icon

Features

Tuning range 410-710nm and 710nm to 2.3µm


UV harmonic option for 205-419nm
Linewidth <3cm-1
Fully integrated pump laser and OPO
Motorised OPO tuning with optional closed loop wavelength feedback
OPO optical compensation and 1064nm variable optical attenuator
355nm process shutter with energy monitoring as standard
Full PC control via RS232


Options Include


Motorised and closed loop automatic tuning of pump laser harmonics
Auto-stabilisation of pump energy including power supply control
Automated no-gap output tuning from 205nm to 2.3µm

Applications

Photo Acoustic Imaging
Laser Induced Fluorescence
Photobiology
High Resolution Spectroscopy
Non Linear Spectroscopy
Remote Sensing
Process Monitoring
Combustion Research
Display Manufacture and Testing
