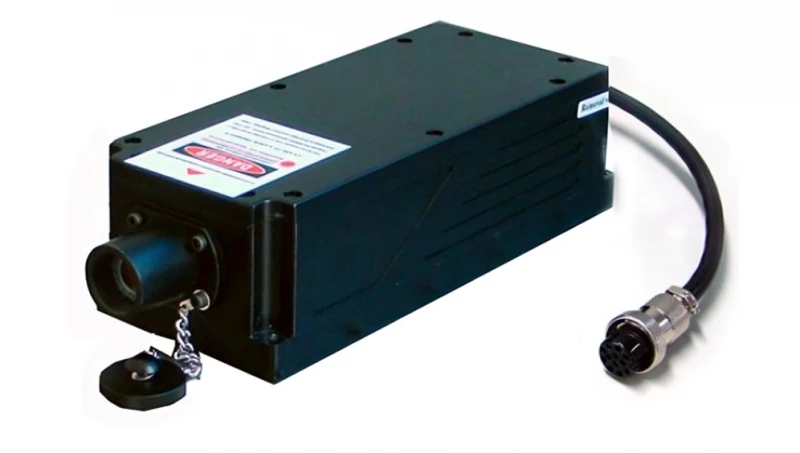

671nm Single Longitudinal Visible DPSS CW Laser MSL-FN-671
Description
The MSL-FN-671 is an all solid-state single longitudinal mode red laser at 671nm known for its ultra-compact design, long lifetime, low cost, and ease of operation. It finds applications in DNA sequencing, flow cytometry, cell sorting, optical instruments, spectrum analysis, interference, measurement, holography, brillouin scattering, and physics experiments.
671nm Single Longitudinal Visible DPSS CW Laser MSL-FN-671
Specifications |
|
|---|---|
| Wavelength: | 671 nm |
| Max Output Power: | 500 mW |
| Cooling Method: | Other (not specified) |
| Tunability: | Single Wavelength Tunable |
| Control Interface: | Other (not specified) |
| Transverse Mode: | TEM00 |
| Longitudinal Mode: | Single |
| Spectral Linewidth: | <0.00001 nm |
| Coherent Length: | >50 m |
| Noise Of Amplitude (rms, 1Hz~20MHz): | <1%, typical<0.5% |
| M2 Facto: | <1.2 |
| Beam Diameter At The Aperture (1/e 2 , Mm): | <2.0, typical<1.5 |
| Beam Divergence, Full Angle: | <1.2 mrad |
| Polarization Ratio: | >100:1, Vertical±5 degree (Horizontal Optional) |
| Warm-up Time: | <10 min |
| Beam Height From Base Plate: | 27.4 mm |
| Operating Temperature: | 15-35 °C |
| Power Supply (90-264VAC): | PSU-H-FDA |
| Expected Lifetime: | 10000 hours |
| Warranty: | 1 year |
Features
- Single longitudinal mode operation
- Ultra-compact design
- Long lifetime
- Low cost
- Easy operation
- High power stability
Applications
- DNA sequencing
- Flow cytometry
- Cell sorting
- Optical instruments
- Spectrum analysis
- Interference measurement
- Holography
- Brillouin scattering
- Physics experiments
