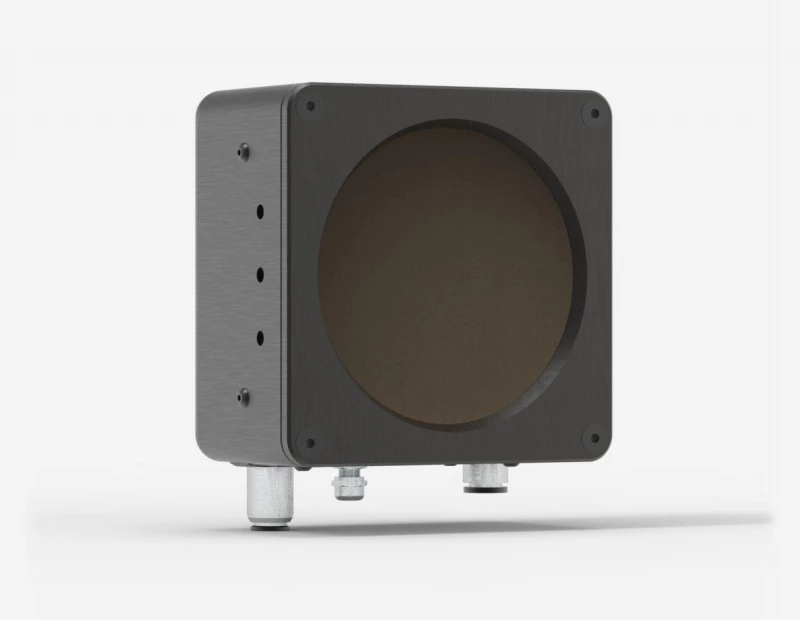

The BD-4KW-HE-MET-D0 is a high-performance water‑cooled laser beam dump engineered to safely absorb and dissipate high continuous-wave laser powers up to 4000 W. Designed for demanding industrial, scientific, and research environments, this unit delivers reliable protection for personnel and equipment when working with high-power laser systems such as fiber lasers, disk lasers, diode stacks, and CO2 lasers. Its robust absorber and thermally optimized housing make it ideally suited for applications where long-term stability, repeatable performance, and high damage thresholds are critical.

A key advantage of the BD-4KW-HE-MET-D0 is its very large 100 mm diameter aperture. This generous clear aperture easily accommodates large-diameter beams, multi-mode profiles, and slightly misaligned beams without clipping, reducing the risk of local hot spots and unwanted reflections. It is particularly useful in setups involving beam expanders, large process heads, or multi-kilowatt laser sources where conventional small-aperture beam dumps are inadequate. The high-efficiency HE absorber is optimized for rugged operation under sustained loads, maintaining consistent absorption performance over extended duty cycles.

The beam dump is designed for straightforward integration into new or existing laser workstations. With a compact form factor of 127 mm (H) × 127 mm (W) × 74 mm (D) and a weight of 1.8 kg, it is easy to mount on optical tables, machine frames, or custom fixtures. It is compatible with the STAND-S-443-C support, allowing flexible positioning and alignment in complex beam paths, safety enclosures, or test benches. The plug‑and‑play water-cooling interface requires only a stable coolant flow of 4–6 LPM within a temperature range of 15–25 °C, enabling fast setup with standard industrial chillers or lab recirculators.

In high-power laser safety, damage thresholds are a decisive factor. The BD-4KW-HE-MET-D0 supports a maximum continuous average power of 4000 W and can tolerate up to 4500 W for durations of up to two minutes. The maximum average power density is rated at 10 kW/cm² at key industrial wavelengths around 1064 nm, 1.07–1.08 µm, and 10.6 µm, making it suitable for many Nd:YAG, ytterbium fiber, and CO2 laser systems. These ratings provide a generous operating margin for alignment beams, calibration routines, system tuning, and process verification at multi‑kilowatt power levels.

The BD-4KW-HE-MET-D0 is also designed with back reflection management in mind. Typical back reflections are in the 10–15% range, and for more demanding configurations, an optional isolation tube can be added to further reduce back reflections directed toward upstream optics or the laser source. This option is particularly valuable in sensitive systems where feedback into the resonator or delivery fiber must be minimized, such as in precision cutting, welding, additive manufacturing, or optics testing setups.

Compared with many conventional beam dumps and improvised absorption targets, the BD-4KW-HE-MET-D0 offers a carefully engineered solution purpose-built for high-power operation. Its combination of a wide aperture, high damage threshold, efficient water cooling, and industrial-grade construction supports higher duty cycles and improved safety margins. Whether used as a permanent termination point in a production cell, a diagnostic station in an R&D lab, or a protective endpoint for service and alignment tasks, this beam dump delivers reliable performance and peace of mind for multi‑kilowatt laser handling.

The BD-4KW-HE-MET-D0 (part number 202936M) is part of a broader family of high-power beam dumps, which also includes a 12 kW variant for even more demanding systems. For users working with up to 4 kW of average power, this model offers an optimized balance of size, cooling requirements, and power handling capacity, making it a versatile, long-term solution for safe beam termination across a wide range of industrial and laboratory laser applications.
