Laser Beam Dumps
Frequently Asked Questions
A laser beam dump is a device used to safely absorb or dissipate high-energy laser beams in laser systems or experiments. It is typically made of a high-density material such as copper, aluminum, or graphite, and is designed to withstand the high temperatures and pressures generated by the laser beam.
Laser beam dumps are essential to prevent damage to the laser system, optics, or personnel in case of accidental or intentional laser beam misdirection or deflection. They also help to maintain stable laser performance by preventing unwanted laser reflections or feedback.
Laser beam dumps work by absorbing or scattering the laser beam energy into heat, which is then dissipated into the surrounding environment. They may also use water-cooling or forced-air cooling to further dissipate the heat. The choice of beam dump material and design depends on the laser wavelength, power, and duration.
The main factors to consider when selecting a laser beam dump include the laser power, wavelength, and pulse duration; the beam size and divergence; the maximum allowable temperature rise; the cooling method; and the cost and ease of installation. It is important to choose a beam dump that can safely absorb or dissipate the laser energy without causing damage or hazardous conditions.
Some common materials used for laser beam dumps include copper, aluminum, graphite, silicon, and ceramics such as alumina or zirconia. The choice of material depends on the laser wavelength, power, and duration, as well as the desired thermal and mechanical properties.
The appropriate size of a laser beam dump depends on several factors, including the laser power, beam diameter, and divergence, as well as the desired maximum temperature rise and cooling method. Typically, the beam dump should be large enough to absorb or dissipate the entire laser beam energy without exceeding its thermal or mechanical limits.
Depending on the material and design, some laser beam dumps can be reused after absorbing a certain amount of energy, while others may need to be replaced. It is important to monitor the condition of the beam dump and replace it when necessary to ensure safe and reliable laser operation.
The effectiveness of a laser beam dump can be tested by measuring the temperature rise and thermal stability of the beam dump during laser operation, as well as the intensity and polarization of any scattered or reflected laser light. It is important to conduct regular testing and maintenance of laser beam dumps to ensure their continued effectiveness and safety.
Laser Beam Dumps: Essential Safety Components in Photonics Laboratories
Laser beam dumps are critical devices designed to safely absorb and dissipate the energy of laser beams, preventing unwanted reflections and ensuring the safety of both personnel and equipment in photonics laboratories and industrial settings.
What Are Laser Beam Dumps?
Laser beam dumps, also known as beam traps or beam blocks, are engineered to capture stray or unused laser beams, converting their optical energy into heat. This process prevents potential hazards such as accidental exposure, equipment damage, or interference with sensitive measurements. They are constructed from materials with high absorbance and low reflectance, such as anodized aluminum or specialized coatings, to efficiently absorb laser energy without sustaining damage.
Types and Features
Beam dumps come in various designs to accommodate different laser types and power levels:
-
Air-Cooled Beam Dumps: Suitable for low to moderate power lasers, these rely on natural convection to dissipate heat.
-

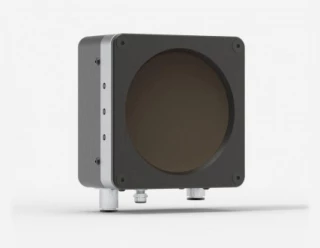

Water-Cooled Beam Dumps: Designed for high-power continuous-wave (CW) or pulsed lasers, these incorporate water channels to manage higher thermal loads.
-
Low Reflectance Designs: Some beam dumps feature internal geometries or coatings that minimize backscatter, enhancing safety and performance.
Manufacturers like Newport, EKSMA Optics, and Kentek offer a range of beam dumps tailored to specific applications, with features such as modular mounting options and compatibility with various beam sizes.
Applications
Laser beam dumps are employed across multiple domains:
-
Research Laboratories: To safely terminate beams during experiments or alignments.
-
Industrial Settings: In laser machining or welding, to absorb residual beams and protect equipment.
-
Medical Facilities: To ensure patient and staff safety by containing stray laser emissions.
-
Educational Institutions: In teaching labs, to provide a safe environment for students learning about laser systems.
Conclusion
Incorporating appropriate laser beam dumps into photonics setups is vital for maintaining safety standards and ensuring the integrity of experimental results. By selecting the right type based on laser specifications and operational requirements, users can effectively manage stray beams and uphold a secure working environment.
