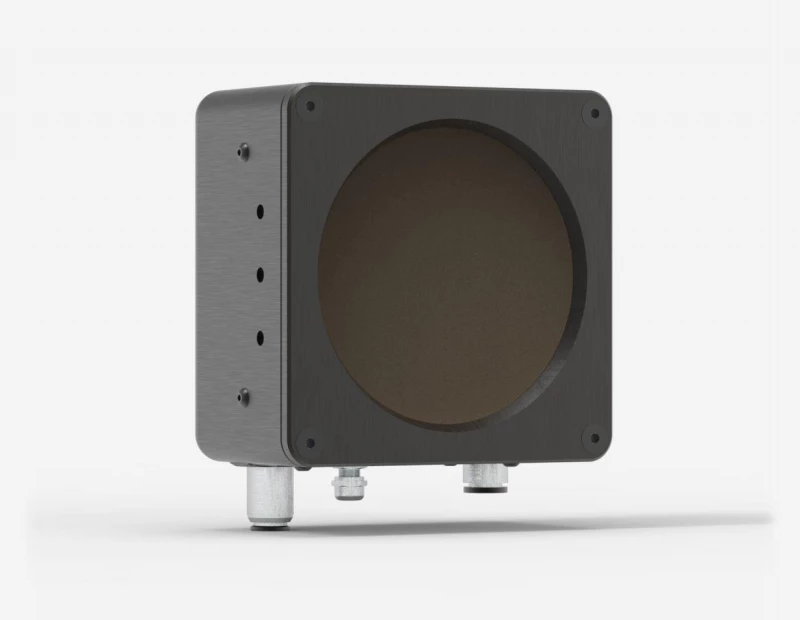

The BD-4KW-HE-MET-D0 is a high-performance laser beam dump specifically engineered for safely absorbing and dissipating high continuous-wave (CW) laser powers up to 4000 W. Designed for demanding industrial, medical, and research environments, this beam dump offers a robust solution for safely terminating high-power laser beams without compromising system performance or operator safety. With a large 100 mm round aperture and carefully optimized absorber geometry, it is well suited to handle today’s high‑power fiber lasers, disk lasers, and CO2 lasers commonly used in cutting, welding, cladding, surface treatment, and advanced laboratory setups.

Compact yet capable, the BD-4KW-HE-MET-D0 combines a heavy-duty absorber (HE type) with efficient water cooling to provide stable operation at up to 4 kW of continuous average power and 4.5 kW for short runs up to two minutes. This level of performance compares favorably with other industrial beam dumps in its class, while maintaining a smaller footprint and lower weight, which simplifies mechanical integration on optical tables, production lines, or laser safety enclosures. The wide 100 mm entrance aperture accommodates large-diameter collimated beams, expanded beams, and beams with positional drift, reducing alignment sensitivity and making the unit highly practical for real-world installations.

The internal absorber geometry and HE coating are optimized for high damage thresholds and efficient power dissipation. For typical industrial wavelengths around 1064 nm, 1.07–1.08 µm, and 10.6 µm, the device can withstand power densities up to 10 kW/cm², allowing it to safely absorb focused or moderately concentrated beams, provided the laser is operated within these specifications. This high tolerance, combined with the specified 4000 W continuous power rating, makes the BD-4KW-HE-MET-D0 suitable as a terminal dump for process beams, a safety dump during system idle states, or a protected termination point in beam delivery systems and test benches.

Efficient water cooling is central to the performance of this beam dump. The BD-4KW-HE-MET-D0 requires a cooling water flow of 4–6 LPM within a temperature range of 15–25 °C to maintain stable operating conditions at full power. This makes it compatible with standard industrial chillers and lab cooling loops. Once the water connections are made and the cooling conditions are met, the system is essentially plug‑and‑play from a thermal management standpoint. Consistent cooling not only preserves long-term reliability of the absorber but also stabilizes the structure thermally, which is important for systems that must maintain beam geometry and alignment over extended operating periods.

Mechanically, the BD-4KW-HE-MET-D0 is designed for easy integration into a wide variety of setups. With dimensions of 127 × 127 × 74 mm and a weight of only 1.8 kg, it is compact enough for crowded optical tables, enclosed laser workstations, and OEM platforms where space is at a premium. The front 100 mm aperture enables straightforward beam entry even when upstream optics or beam delivery fibers produce large or slightly misaligned beams. For enhanced mounting flexibility and repeatable positioning, the beam dump is compatible with the STAND-S-443-C support, allowing users to quickly implement stable vertical or horizontal configurations according to their layout and safety requirements.

In applications where back reflections must be tightly controlled—such as when working with high‑brightness fiber lasers, sensitive upstream optics, or systems prone to feedback-induced instabilities—the BD-4KW-HE-MET-D0 offers an optional isolation tube. This accessory helps reduce back reflections, which are typically in the 10–15% range, by further trapping and attenuating stray light. The combination of a deep absorber cavity, appropriate surface treatment, and optional isolation tube provides a practical way to manage unwanted reflections, especially in high-precision or high-stability environments.

As part of a family of high-power beam dumps that also includes a higher power 12 kW model, this 4 kW version is a versatile choice for manufacturers and researchers who require reliable beam termination without the overhead of oversized absorbers. It is particularly well suited to laser integration labs, laser process development centers, maintenance stations, and quality control cells where beams must be safely dumped during calibration, testing, and alignment. By combining high power handling, a generous aperture, efficient water cooling, and a compact, easy-to-mount form factor, the BD-4KW-HE-MET-D0 provides a dependable and efficient solution for managing laser power in advanced optical and industrial systems.
