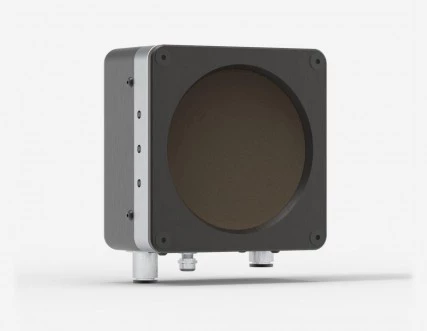

High Power Laser Beam Dump BD-12KW-HD-MET-D0

Visit the Gentec-EO Store

Specifications

Cooling: Water Flow
Max Average Power Density: 16 kW/cm2
Aperture Diameter: 100 mm
Maximum Average Power (continuous): 12000 W
Maximum Average Power (2 Minutes): 12000 W
Maximum Average Power Density: 16 kW/cm²
Aperture Diameter: 100 mm
Dimensions: 127H x 127W x 70D mm
Weight: 3.3 kg
Required Cooling Flow: (6 - 10) LPM
Temperature Range: (15 - 25) °C
Back Reflections: 10-15%
Document icon Download Data Sheet Download icon

Features


  • High Power Capacity: Designed to handle laser beams with power up to 12,000 W.

  • Easy-to-Use: Simply connect the water-cooling system, and it's ready to operate.

  • Two Models Available: Choose between the 4 kW model (BD-4KW-HE) and the 12 kW model (BD-12KW-HD) to suit your needs.

  • Very Large Aperture: Features a round aperture with a 100 mm diameter, accommodating even the largest beams.

  • High Damage Thresholds: Capable of handling up to 16 kW/cm² at 500 W.

  • Optional Isolation Tube: Add an isolation tube to minimize back reflections.

  • Compatible Stand: Use with the STAND-S-443-C for optimal stability and performance.

  • Water Cooling Requirements: Requires a cooling flow of 6 - 10 LPM within a temperature range of 15 - 25 °C.

  • Physical Characteristics:

    • Dimensions: 127H x 127W x 70D mm

    • Weight: 3.3 kg

    • Back Reflections: 10-15%



Applications

Laser beam dumping/blocking in various academic and industrial settings, such as:



  • Laser labs

  • High-power laser systems (benchtop or industrial)

  • Alignment stations
