Description

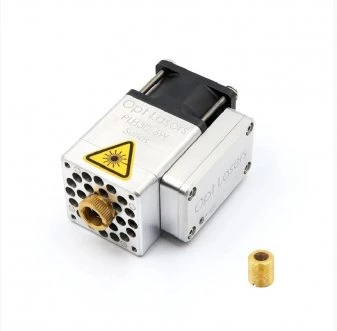

The PLH3D-6W Series laser head is a versatile and powerful tool designed for precision engraving and cutting across a wide range of materials. Its compact and lightweight design makes it an ideal choice for integration with nearly all CNC machines and 3D printers, offering a seamless replacement for traditional CO2 lasers in various applications. The laser head is engineered to handle tasks such as engraving and cutting plastics, woods, cardboard, textiles, and even marking metals like stainless steel and titanium.
One of the standout features of the PLH3D-6W Series is its efficient thermal management system. The laser head's body is crafted from machined 6000-Series Aluminum, which not only ensures a low weight but also acts as an effective heat sink. This design helps in dissipating heat away from the laser diode, thereby extending its operational lifetime. Additionally, the laser head incorporates a fan that directs air to remove smoke, further enhancing its performance during prolonged use.
To safeguard the laser head from overheating, it is equipped with an automatic shutdown feature that activates when the housing temperature exceeds 47°C (116°F), resuming operation once it cools down to 40°C (103°F). This protective mechanism ensures the longevity of the semiconductor laser. Moreover, the integrated laser driver within the head allows for higher modulation frequencies and the use of longer cables, providing greater flexibility in various setups.
The PLH3D-6W Series laser head comes with a High-Efficiency Mounted Aspheric lens and a High-Resolution Triplet lens, with the latter being recommended for optimal engraving results. The focal length is adjustable, allowing users to fine-tune the focus for different materials and applications. This adaptability makes it suitable for engraving on a variety of woods, including birch, pine plywood, balsa, hardwood, and MDF, as well as cutting low-density woods and textiles like cotton, denim, and nylon.
In addition to its capabilities with wood and textiles, the laser head's blue light is effective for engraving metals such as black anodized aluminum and wrought iron, and marking titanium and stainless steel. It also excels in cutting and engraving various plastics, including ABS, acrylic, polypropylene, and polyamides, as well as rubber compositions like latex and neoprene. The PLH3D-6W Series can even handle leather, making it a comprehensive solution for diverse engraving and cutting needs.
PLH3D-6W-XF+ Engraving Laser Head
Specifications |
|
|---|---|
| Focal Length: | 120 mm |
| Max Laser Power: | 6000 W |
| Laser Type: | Diode |
| Laser Machine: | Engraver |
| Features: | Other (see Data Sheet) |
| Laser Diode Optical Power: | 6 W |
| Focus Distance: | 20 - 120 mm |
| Max. Power Consumption: | 30 W |
| Laser Diode Wavelength: | 450 nm |
| Modulation Input 1: | 0 - 5V Analog/TTL/PWM |
| Modulation Input 2: | 0 - 24V TTL/PWM |
Features
- Versatile Material Compatibility: The PLH3D-6W Series laser head can engrave and cut a wide range of materials including plastics, woods, cardboard, textiles, anodized aluminum, stainless steel, and titanium.
- Universal Mounting: Compatible with nearly all CNC machines and 3D printers, making it a versatile replacement for CO2 lasers in various applications.
- Compact and Lightweight Design: No additional cooling required. The laser head's body efficiently directs air from the fan to remove smoke and acts as a heat sink.
- Durable Aluminum Housing: Made from machined 6000-Series Aluminum, ensuring low weight and effective heat conduction to extend the laser diode's lifetime.
- Overheat Protection: Automatically shuts off when the housing temperature exceeds 47°C (116°F) and resumes operation at 40°C (103°F) to protect the semiconductor laser.
- Integrated Laser Driver: Increases maximum modulation frequency and allows for longer cable usage, enhancing operational flexibility.
- High-Quality Lenses: Includes High-Efficiency Mounted Aspheric lens and High-Resolution Triplet lens, with adjustable focal length for optimized engraving.
- Wood and Textile Engraving: Capable of engraving on various woods like Birch, Pine plywood, Balsa, hardwood, and MDF, as well as cutting textiles such as cotton, denim, felt, and nylon.
- Metal and Plastic Engraving: Engraves metals like black anodized Aluminum and wrought Iron, and marks Titanium and stainless steel. Cuts and engraves plastics like ABS, Acrylic, Polypropylene, and more.
- Leather Engraving: Can cut or engrave brown and black full-grain leather, offering versatility for leatherworking applications.
Applications
- Wood and Soft Materials Cutting: Cuts up to 6 mm thick materials with multi-pass capability.
- Engraving & Marking: Engrave intricate designs on wood, cardboard, plastics, leather, and metals.
- CNC & 3D Printer Upgrades: Transform standard machines into high-performance cutting tools.
- Prototyping & DIY Projects: Ideal for hobbyists, makers, and professional workshops.
Frequently Asked Questions
The laser head can cut and engrave plastics, woods, cardboard, textiles, anodized Aluminum, stainless steel, and Titanium.
The laser head is compatible with all types of control signals used in the CNC and 3D printing market.
No, the laser head does not require additional cooling. It has a built-in fan that provides outstanding cooling and smoke removal.
Yes, the laser head is universally mountable and can replace CO2 lasers in many applications.
The laser head automatically shuts off when the housing temperature exceeds 47°C (116°F) and resumes operation when it reaches 40°C (103°F).
