Description
The G5 Series Laser Process Head is designed for High-Speed Multi-Kilowatt Cutting Applications. The G5 Series provides additional Z-Axis adjustment of the focus lens cell to compensate for varying High-Pressure Optic Thickness. Internal water passage reduces outside cooling lines on multiple focal length configurations.

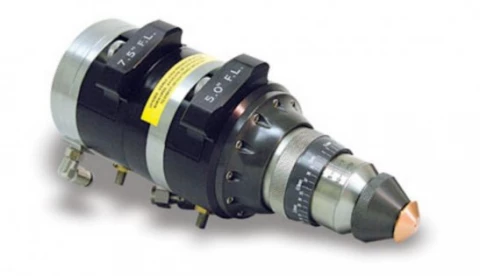

G5-Laser Process Head
Specifications
| Aperture: | 34.8 mm |
|---|---|
| Focal Length: | Not Specified |
| Max Laser Power: | 6000 W |
| Laser Type: | Other / Not specified |
| Laser Machine: | Cutter, Welder |
| Features: | Crash Detection |
| Weight: | Not Specified |
Download Data Sheet
Features
- X-Y-Z Adjustable Optic Cartridge Design
- Up to +/- 5mm Z Optic Cartridge adjustment for different optic thickness
- Internal Cooling of Multiple Optic Configurations
- Crash Detection and Protection Options
- Calibrated Nozzle Tip Stand-off Adjustment
- Water-Cooled Optics
- Gas Jet Manifold
- Multiple Optic Options
- Available for a Wide Variety of Optics
- Modular Design for Custom Configurations
- All Metric Stainless-Steel Hardware
Frequently Asked Questions
What are the features of the G5 Series?
The G5 Series features X-Y-Z Adjustable Optic Cartridge Design, Internal Cooling of Multiple Optic Configurations, Crash Detection and Protection Options, Calibrated Nozzle Tip Stand-off Adjustment, Water-Cooled Optics, Gas Jet Manifold, and Multiple Optic Options.
What is the contact information for purchasing the G5 Series?
To purchase the G5 Series, you can contact Haas Laser Technologies Inc. at Phone: 973.598.1150, Fax: 973.598.1151, or Email: sales@haaslti.com.
What is the G5 Series Laser Process Head designed for?
The G5 Series Laser Process Head is designed for High-Speed Multi-Kilowatt Cutting Applications.
What is the material used for the hardware of the G5 Series?
All Metric Stainless-Steel Hardware is used for the G5 Series.
What is the Z Optic Cartridge adjustment range of the G5 Series?
The G5 Series provides up to +/- 5mm Z Optic Cartridge adjustment for different optic thickness.
