Description
The 38mm c.a. fiber laser process head system is designed for 1KW to 10KW Fiber Laser cutting and welding applications. The robust industrial modular design permits custom configurations utilizing standard components. Several collimation and focus lens configurations are available to suit all fiber laser makes and models.
Additional CCD viewing, capacitive non-contact height sensing with linear Z axis and pneumatic crash sensors are just some of the additional features available.

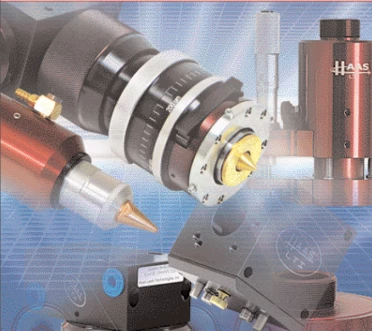

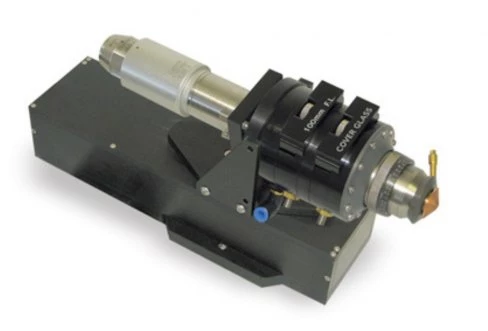

38mm Fiber Laser Process Head System
Specifications
| Aperture: | 35.5 mm |
|---|---|
| Focal Length: | Not Specified |
| Max Laser Power: | 10000 W |
| Laser Type: | Fiber |
| Laser Machine: | Cutter, Welder |
| Features: | Crash Detection |
| Weight: | 10 kg |
Download Data Sheet
Features
This 38mm Fiber Laser Process Head System comes with the following key features:
- 35.5mm Clear Aperture for 1KW-10KW Fiber Laser Cutting and Welding Applications
- Water-Cooled Optics
- Multiple Optic Options
- Robust Modular Industrial Design for Custom Configurations
- Crash Detection and Protection Options
- X-Y Adjustable Optic Cartridge Design
- Calibrated Nozzle Tip Stand-off Adjustment
- Gas Jet Manifold Rated to 31 Bar (450PSI)
- Several air knife and cover glass options available.
- All Metric Stainless Steel Hardware
- Anodized Aluminum, Brass, and Stainless Steel Construction
- Accessory and Optic Cleaning Kit Available
Applications
Ideal choice as a replacement or an upgrade in laser cutting and laser welding machines
Frequently Asked Questions
What applications is the 38mm Fiber Laser Process Head System suitable for?
The 38mm Fiber Laser Process Head System is an ideal choice as a replacement or an upgrade in laser cutting and laser welding machines.
What are some of the additional features available with the 38mm Fiber Laser Process Head System?
Some of the additional features available with the 38mm Fiber Laser Process Head System include CCD viewing, capacitive non-contact height sensing with linear Z axis, and pneumatic crash sensors.
What are some of the features of the 38mm Fiber Laser Process Head System?
The 38mm Fiber Laser Process Head System comes with features such as water-cooled optics, multiple optic options, robust modular industrial design for custom configurations, crash detection and protection options, and X-Y adjustable optic cartridge design.
What is the 38mm Fiber Laser Process Head System designed for?
The 38mm Fiber Laser Process Head System is designed for 1KW to 10KW Fiber Laser cutting and welding applications.
What is the clear aperture size of the 38mm Fiber Laser Process Head System?
The clear aperture size of the 38mm Fiber Laser Process Head System is 35.5mm for 1KW-10KW Fiber Laser cutting and welding applications.
