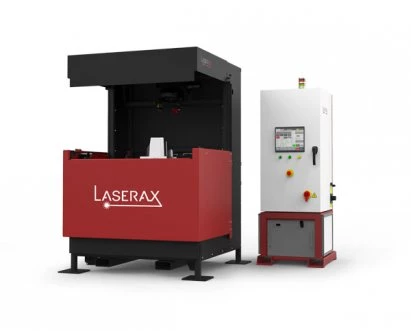

DOOR LASER CLEANING MACHINE
Description
The Door Cleaning Machine is a simple solution suitable for several industrial cleaning applications. With its compact footprint and U-shaped door, it can easily be integrated in existing robotic cells.
This Class-1 high-power machine can perform several surface treatments, such as cleaning and texturing, and offers up to 500W of laser power.
Several options are available, such as automatic focus compensation, part rotation, or laser head linear movements on a gantry system. The machine also incorporates an efficient filtration system to manage fumes and dust generated by the laser process.
DOOR LASER CLEANING MACHINE
Specifications |
|
|---|---|
| Material: | Steel, Iron, Aluminum, Copper, Chrome, Metal Alloys, Galvanized Metals, Cast Iron |
| Application: | Rust Removal, Paint Stripping, Corrosion Removal, Oxide Removal |
| Laser Type: | Fiber |
| Laser Average Output Power: | 20-500 W |
| Laser Safety Class: | Class 1 |
| Wavelength: | 1064 nm |
| Platform Type: | Gantry |
Features
Dynamic Autofocus
HMI Control Panel
Cleaning Quality Validation
Laser Configuration
Custom Fixtures
Fixture Validation
Automation Features
Applications
Rust removal
Oxide removal
Paint removal
Texture making
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The Door Cleaning Machine can be used for rust removal, oxide removal, paint removal, and texture making.
Yes, the machine can be scaled to accommodate different part sizes.
Yes, the machine incorporates an efficient filtration system to manage fumes and dust generated by the laser process.
The Door Cleaning Machine offers a laser power range of 20 to 500W.
The Door Cleaning Machine uses a Ytterbium-doped fiber laser.
