Description

200W Laser cleaning machine is a high-tech and latest product of surface cleaning, it is easy to install, operate and automated. The whole machine is simple to operate, connect the power, then it can start to clean without chemical reagent, medium and water.

With auto focus, spherical surface cleaning, high cleanliness, can remove the resin, oil contamination, stains, dirt, rust, coating, plating and paint on the surface of different shape metal objects, and the stone caving surface attachments and rubber mold surface residue. Mainly used in mold processing, automobile manufacturing, shipbuilding industry, food processing, sewage treatment, rubber tires and petrochemical industries.

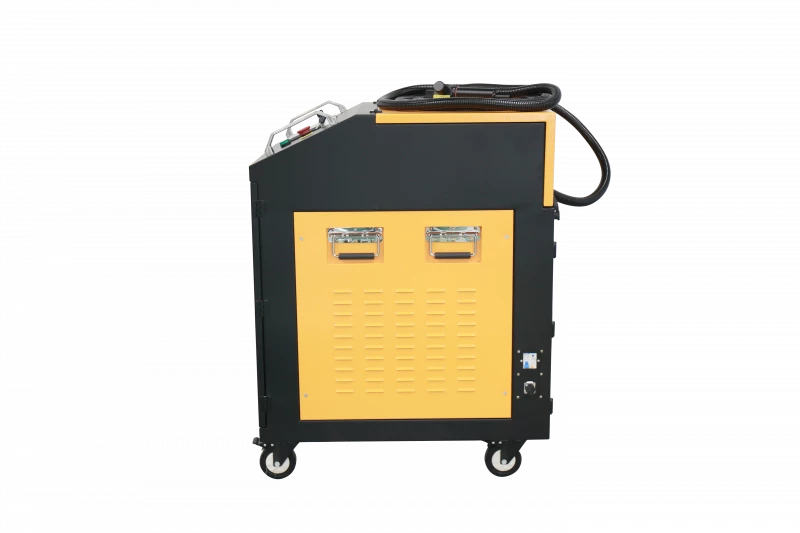

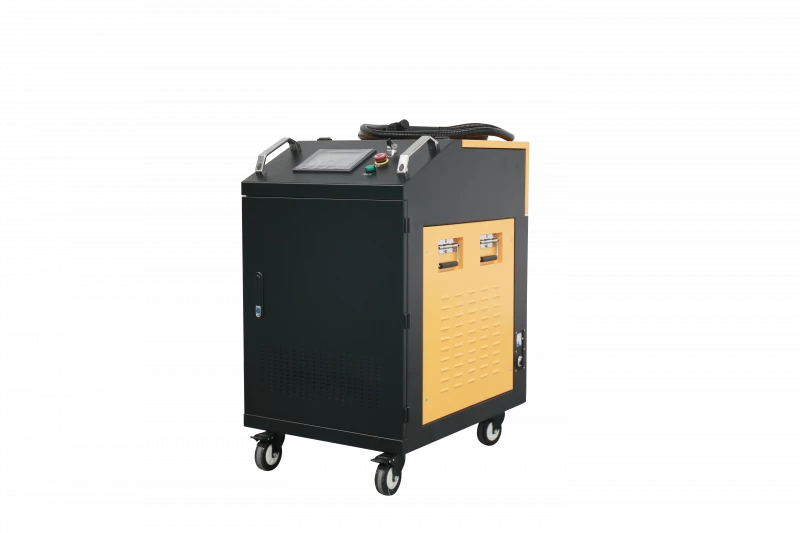

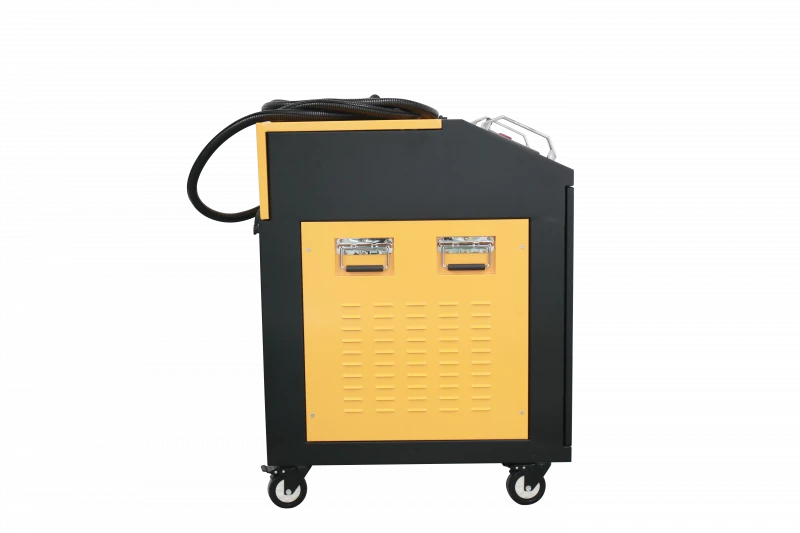

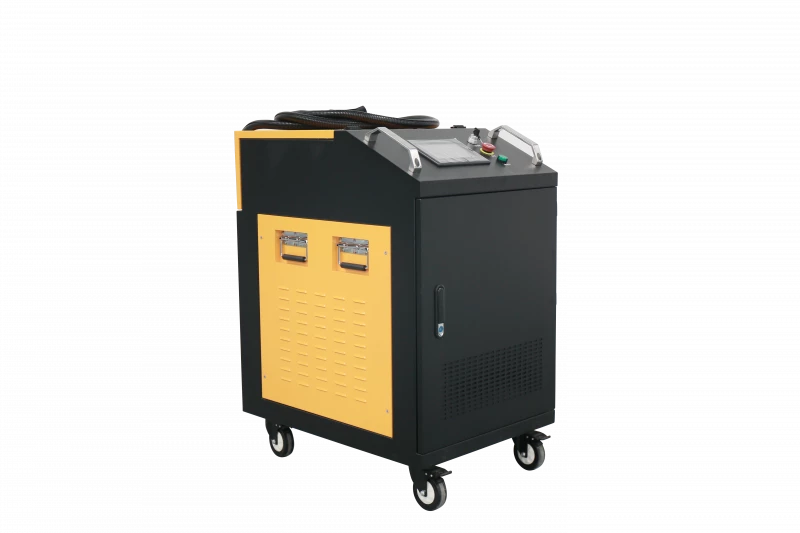

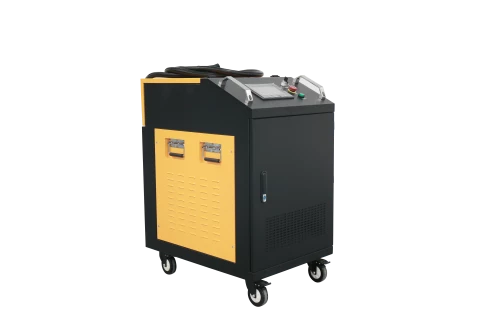

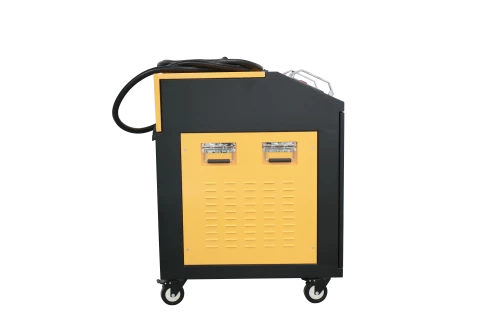

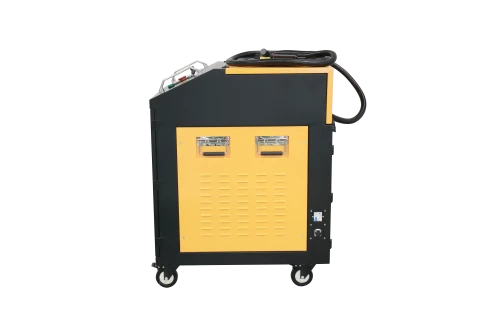

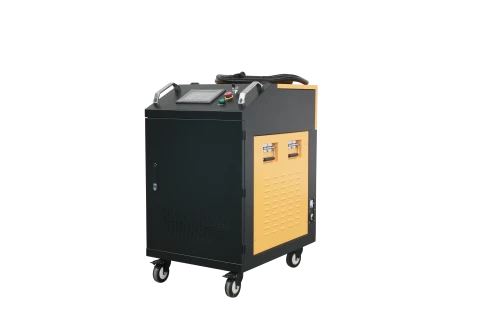

200W Fiber Laser Cleaning Machine

Visit the Chengdu MRJ-Laser Technology Co., Ltd. Store

Specifications

Material: Steel, Iron, Aluminum, Copper, Titanium, Concrete, Ceramic, Glass, Plastic, Chrome, Metal Alloys, Galvanized Metals, Cast Iron, Other
Application: Rust Removal, Paint Stripping, Corrosion Removal, Oxide Removal, Anodization Removal, Zinc Removal, Mold Cleaning, Degreasing, Pre-Adhesion Treatment, Stone Restoration, Other
Laser Type: Fiber
Laser Average Output Power: 200 W
Laser Safety Class: Class 4
Wavelength: 1064 nm
Platform Type: Portable
Pulse Energy: 1.5 mJ
Focal Length: 160 mm
Clean Head Weight: 0.7 kg
Working Temperature: 0-45 ℃
Cable Length: 5 m
Scan Length: 1-100 mm
Scan Width: 1.20 mm
Touch Screen: 7 inch
Input Power: 100-240 V

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Applications

  • Precise de coating of small areas
  • Natural stone cleaning
  • Rust/oxide removal
  • Oil & grease removal/Cleaning oil deposits
  • Paint & plating removal
  • Pre-treatment to enhance adhesive bonding
  • In-line baking plate cleaning
  • Print rollers cleaning
  • Weld seam pre-treatment/Removal preparation welding layers
  • Industrial, military & shipyard - production intensive de-coating
  • Nuclear de-contamination

Frequently Asked Questions

What is the 200W Fiber Laser cleaning machine used for?
The 200W Fiber Laser cleaning machine is used for surface cleaning, including removing resin, oil contamination, stains, dirt, rust, coating, plating, and paint on metal objects, as well as stone caving surface attachments and rubber mold surface residue.
How does the 200W Fiber Laser cleaning machine work?
The 200W Fiber Laser cleaning machine operates without the need for chemical reagents, medium, or water. It uses auto focus and spherical surface cleaning technology to achieve high cleanliness.
What industries can benefit from using the 200W Fiber Laser cleaning machine?
The 200W Fiber Laser cleaning machine is mainly used in mold processing, automobile manufacturing, shipbuilding industry, food processing, sewage treatment, rubber tires, and petrochemical industries.
What are the technical specifications of the 200W Fiber Laser cleaning machine?
The 200W Fiber Laser cleaning machine has a laser power of 120W and a laser wavelength of 1064nm. It has a pulse energy of 1.5mJ and a focal length of F=160mm/F=254mm (customizable). The machine weighs 67.84kg and has a size of 670x430x800mm.
What is the power consumption of the 200W Fiber Laser cleaning machine?
The 200W Fiber Laser cleaning machine has a power consumption of 1200W and operates on single-phase 100-240V AC, 50/60Hz input power.
