Description
A pulsed laser cleaning machine is an advanced cleaning device that uses high-energy laser pulses to remove rust, paint, oil, oxides, and other surface contaminants. Unlike continuous lasers, which emit a steady beam, pulsed lasers deliver short bursts of energy with extremely high peak power. This allows for precise and controlled cleaning with minimal heat input to the base material, making it ideal for delicate surfaces that require careful handling. The non-contact process ensures that there’s no physical abrasion, and no chemicals or consumables are needed, making the method environmentally friendly and safe for operators.
These machines are widely used in industries such as electronics, aerospace, automotive, mold manufacturing, and cultural relic restoration. They are especially suited for applications where surface integrity is critical, such as cleaning fine structures, removing thin coatings, or preparing surfaces for bonding or welding. Pulsed laser cleaning offers excellent versatility and can be applied to metals, stone, glass, and other materials without damaging the substrate. Thanks to its precision, safety, and efficiency, the pulsed laser cleaning machine has become a popular choice for both industrial and restoration purposes.

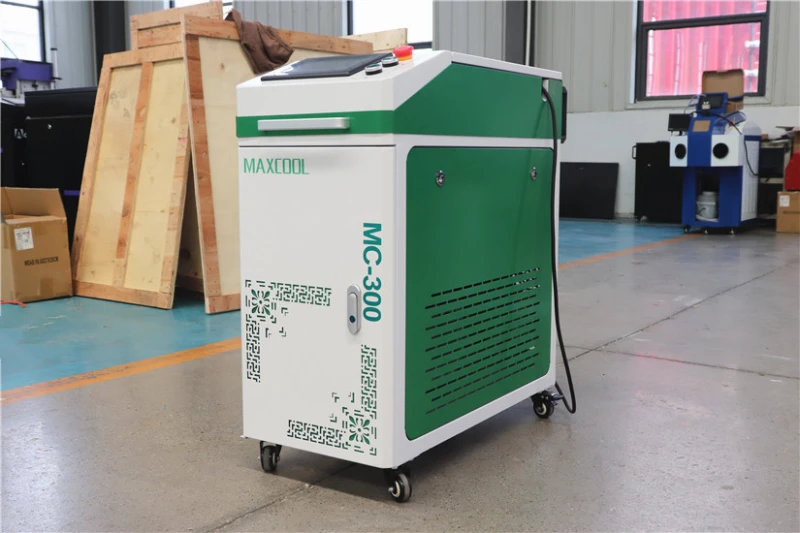

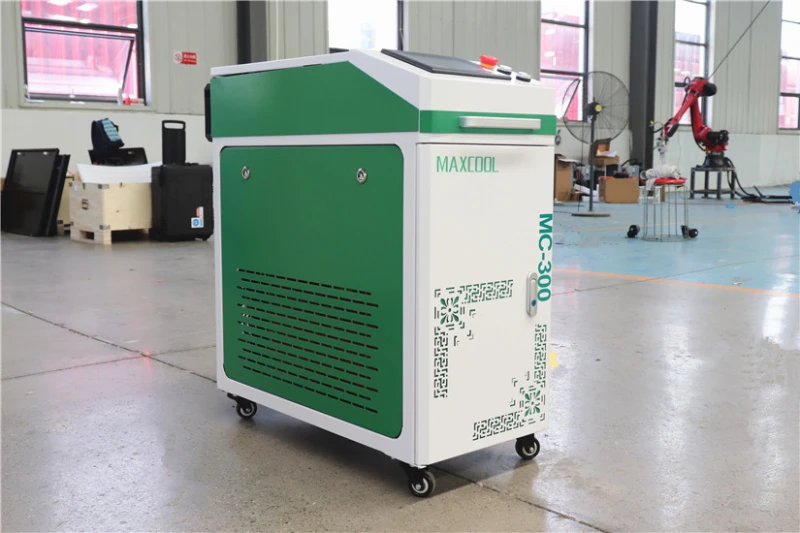

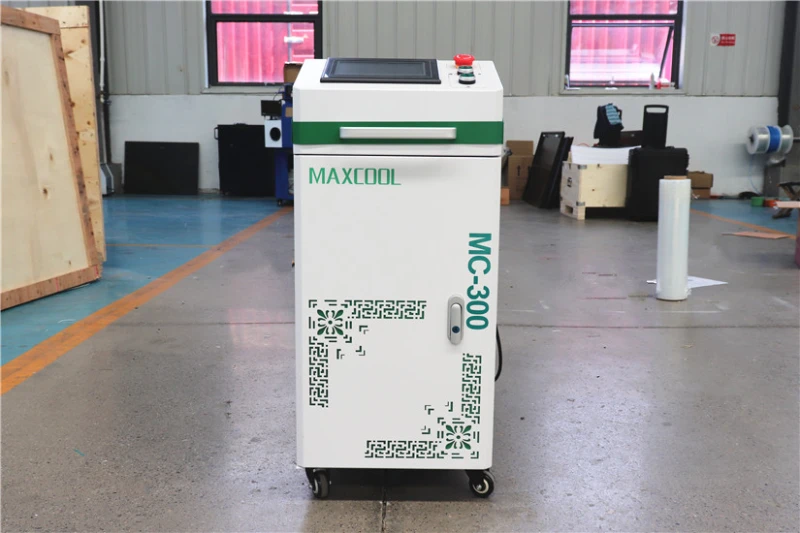

MCQ-300 Pulsed Laser Cleaning Machine
Specifications |
|
|---|---|
| Material: | Steel, Iron, Aluminum, Copper, Titanium, Ceramic, Plastic, Chrome, Galvanized Metals, Cast Iron |
| Application: | Rust Removal, Paint Stripping, Corrosion Removal, Oxide Removal, Anodization Removal, Mold Cleaning, Degreasing, Pre-Adhesion Treatment, Stone Restoration |
| Laser Type: | Fiber |
| Laser Average Output Power: | 200 W |
| Laser Safety Class: | Class 4 |
| Wavelength: | 1064 nm |
| Platform Type: | Portable |
| Model: | MCQ-300 |
| Warranty For Whole Machine: | Three years |
| Warranty For Generator: | Two years |
| Warranty For Spindle And Inverter: | One year |
Features
High Precision Cleaning: The pulsed laser emits short bursts of energy, allowing for accurate removal of surface contaminants without damaging the base material—ideal for delicate or detailed work.
Low Heat Input: Pulsed lasers generate minimal heat, reducing the risk of thermal distortion or surface alteration, making them perfect for heat-sensitive materials.
Non-Contact and Non-Abrasive: Cleaning is performed without touching the surface, ensuring no mechanical wear or abrasion—preserving the integrity of the cleaned object.
Eco-Friendly Operation: No chemicals, solvents, or blasting media are required. The process produces little to no secondary waste, supporting green and sustainable manufacturing.
Adjustable Parameters: Operators can fine-tune settings such as pulse frequency, energy, and beam size to adapt to different materials and cleaning needs.
Versatile Applications: Suitable for a wide range of materials and industries, including metal restoration, mold cleaning, paint removal, and artifact conservation.
Portable and Flexible Design: Many pulsed laser cleaners are lightweight or even backpack-style, allowing for convenient use in fieldwork or confined spaces.
These features make pulsed laser cleaning machines a smart solution for precise, efficient, and environmentally conscious surface preparation and restoration tasks.
Applications
- The pulsed laser cleaning machine is widely applied across various industries due to its precision, low heat impact, and non-contact operation. One of its primary applications is in the restoration of cultural relics and artwork, where it gently removes dirt, corrosion, and old coatings without harming delicate surfaces. It’s also extensively used in the electronics and semiconductor industry for cleaning micro-components, ensuring high precision without residue or damage.
- In mold and tool cleaning, pulsed lasers effectively remove built-up residues from injection molds and dies, extending their service life and improving product quality. Additionally, it is used in the automotive and aerospace industries to remove rust, oxides, and coatings from sensitive parts before welding or painting. Other applications include medical equipment cleaning, precision machinery maintenance, and surface preparation for bonding or coating. Its ability to clean without chemicals or abrasion makes it an eco-friendly and reliable solution in modern manufacturing and conservation work.
Frequently Asked Questions
The MCQ-300 is a pulse laser cleaning machine used for cleaning the surface of materials, capable of removing resin, paint, oil pollution, stains, dirt, rust, coatings, and more.
The MCQ-300 comes with a three-year warranty for the whole machine, excluding consumables, two years for the generator, and one year for the spindle and inverter.
MAXCOOL provides 24-hour after-sales support via WhatsApp, email, WeChat, or remote control. Free replacement or maintenance is offered during the warranty period, and lifetime free software upgrades are available.
Yes, engineers or third-party cooperative service providers can repair the MCQ-300 machinery overseas.
The MCQ-300 can clean rust, scale cinder, stainless steel, layered paint, coatings, auto parts, oil, optical fixtures, tire mold side plates, and perform laser texturing and weld laser cleaning.
Yes, CNC machines sold through dealers must be registered with MAXCOOL within 30 days of purchase to enjoy the warranty service.
MAXCOOL has a scientific manufacturing quality control system and invests 10% of its sales into technology research and development to promote continuous product line upgrades. The company has passed ISO, CE, and FDA certifications.
