Description

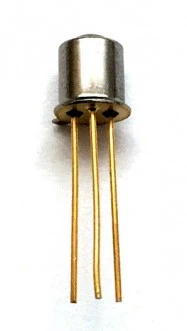

The F5U280 is a cutting-edge UVC light-emitting diode designed to deliver exceptional performance in a compact form factor. Encased in a robust TO-46 package, this LED is engineered to emit light at a precise wavelength of 280 nm, making it ideal for applications requiring targeted ultraviolet light. Its hermetic sealing ensures reliability and longevity, even in demanding environments, providing users with a dependable light source for various applications.
This UVC LED is characterized by its narrow viewing angle and high radiant intensity, typically measuring 33 mW/Sr. Such attributes make it an excellent choice for applications that require focused and intense UV light. The F5U280 is also RoHS compliant, underscoring its commitment to environmental standards and safety. The device's design allows for efficient heat dissipation, with the NC lead capable of being soldered to a ground plane to manage thermal output effectively.
The F5U280 is not only about performance but also about durability. It operates efficiently across a wide temperature range, from -30°C to +85°C, and can be stored safely between -40°C and +85°C. This resilience ensures that the LED maintains its performance over time, even under varying environmental conditions. With its precise engineering and robust construction, the F5U280 stands out as a reliable component for those seeking high-quality UVC light emission.
F5U280 Hermetic UVC Light Emitting Diode
Specifications |
|
|---|---|
| Wavelength: | 280 nm |
| Output Power (typical): | 1.4 mW |
| Emission Angle: | 6 degree |
Features
- Wavelength: 280 nm - Ideal for applications requiring precise UVC light.
- Matched to L14U1 Photodetector: Ensures optimal performance when paired with the L14U1 photodetector.
- Narrow Viewing Angle: Provides focused light emission for targeted applications.
- High Radiant Intensity: Typical intensity of 33 mW/Sr for powerful light output.
- RoHS Compliant: Environmentally friendly and meets all safety standards.
- Package Dimensions: Compact TO-46 package with precise dimensions for easy integration.
- Durable Design: Hermetic sealing ensures reliability and longevity in various environments.
- Operating Temperature Range: -30°C to +85°C, suitable for diverse applications.
- Storage Temperature Range: -40°C to +85°C, allowing for flexible storage conditions.
- Peak Emission Wavelength: 275-285 nm, providing a narrow spectral output.
- Soldering Options: Supports both iron and flow soldering methods for versatile assembly.
- Forward Voltage: 4.0V to 6.2V at 20mA, ensuring efficient power usage.
- Total Radiant Flux: 1.4 mW at 20mA, delivering consistent light output.
Applications
- Water Purification: The F5U280 UVC LED can be used in systems designed to purify water by eliminating harmful microorganisms.
- Air Sterilization: Ideal for air purification systems to reduce airborne pathogens and improve air quality.
- Surface Disinfection: Suitable for devices that disinfect surfaces in healthcare, food processing, and other industries.
- Medical Instrument Sterilization: Can be used in sterilization equipment for medical tools and devices.
- Laboratory Applications: Useful in laboratories for sterilizing equipment and maintaining sterile environments.
- Biological Research: Employed in research settings for studying the effects of UVC light on various microorganisms.
- Horticulture: Used in agriculture to control mold and bacteria on plants without the use of chemicals.
- Consumer Electronics: Integrated into consumer devices for personal hygiene and sanitation purposes.
Frequently Asked Questions
The wavelength of the F5U280 LED is 280 nm.
The F5U280 LED has a very narrow emission angle of approximately 6 degrees.
The F5U280 LED has a high radiant intensity of approximately 33 mW/Sr.
Yes, the F5U280 LED is RoHS compliant.
The dimensions of the F5U280 LED package are not specified in the provided information.
