Description

The ToFFuture XT-M120 Max (MPN XT-M120Max) is the long-range model in the XT-M120 solid-state flash LiDAR family. It concentrates its 940 nm VCSEL illumination into a narrow 32°×24° field of view and reaches 80 m at 50% target reflectivity (up to 100 m at 90%), compared with 20–30 m for the wider-FOV XT-M120 Mini and Pro.

With 0.1°×0.2° angular resolution (120 lines, 38,400 points per frame) and frame rates up to 30 Hz, it suits forward-looking obstacle detection on AGVs and engineering vehicles, traffic and intersection monitoring, perimeter security and long-aisle warehouse monitoring.

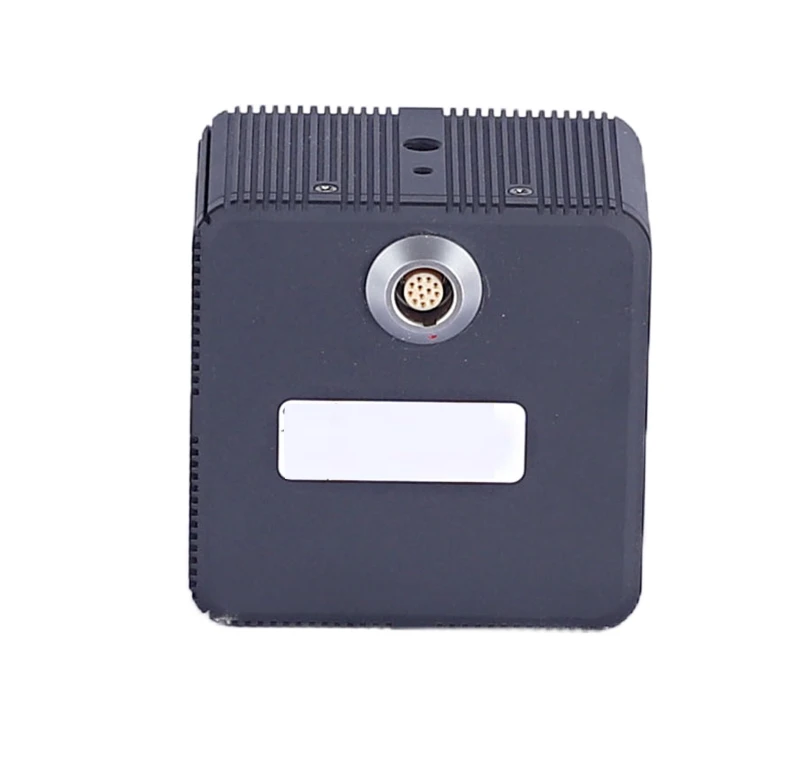

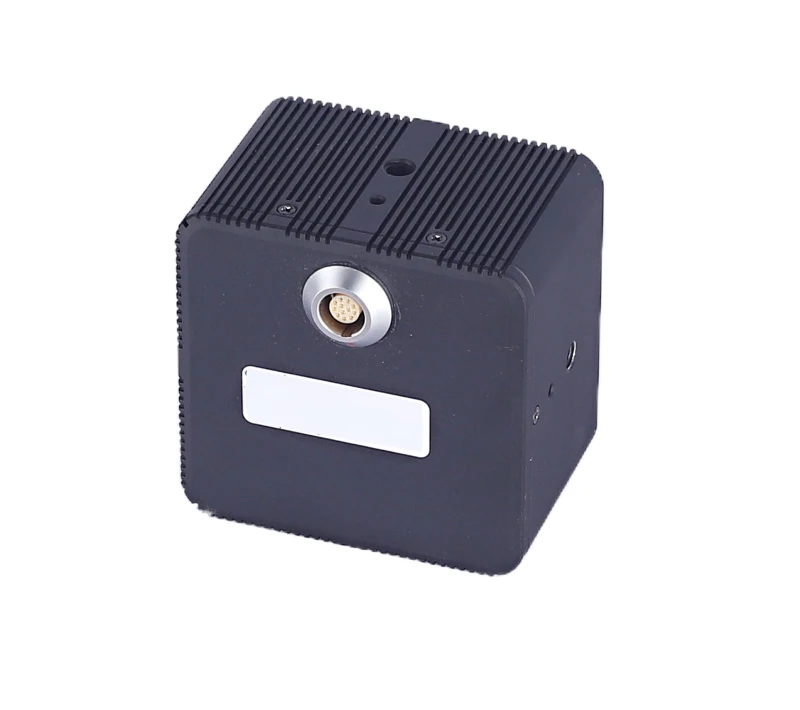

Because it has no moving parts, it is well suited to vibration-prone mounts. The IP67 housing (71×71×51 mm) uses a single M12 aviation connector for 100BASE-T Ethernet data and 12–24 VDC power, with a USB-C port for configuration. It is a Class 1 eye-safe laser product per EN 60825.

Need a wider field of view? Compare the XT-M120 Pro (72°×58°, 30 m) and XT-M120 Mini (106°×80°, 20 m).

XT-M120 Max Solid-State Flash LiDAR, 80m Range, 32° x 24° FOV

Visit the Shanghai ToFFuture Technology Co., Ltd. Store

Specifications

Scanning Method: Solid-State Flash LiDAR
Measurement Principle: Time-of-Flight (ToF) LiDAR
Light Wavelength: 940 nm
Detection FOV, Horizontal: 32 deg
Detection FOV, Vertical: 24 deg
Illumination FOV, Horizontal: 40 deg
Illumination FOV, Vertical: 30 deg
Average Power: 6 – 6 W
Accuracy (% Of Distance): Not Specified
Angle Resolution (H): 0.1 deg
Angle Resolution (V): 0.2 deg
Measurement Distance Outdoor (50% Reflectivity): 80 m
Measurement Distance Indoor (50% Reflectivity): Not Specified
Frame Rate: 1 – 30 Hz
Working Temperature: -40 – 85 degC
Max Lines: 120
Laser Safety Class: Class 1
Certification: CB certification
Standard: EN60825
Interface: 100BASE-T Ethernet, USB-C, M12
Dimensions: 71×71×51 mm
Supply Voltage: DC 12–24 V
IP: IP67
Manufacturer Part Number (MPN): XT-M120Max
FindLight SKU: FL-23921

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Advanced Solid-State Flash Lidar: The XT-M120Max features 120 lines of solid-state flash lidar technology, providing high-resolution and accurate distance measurement capabilities.
  • Class 1 Laser Safety: Certified to meet Class 1 laser safety standards, ensuring it is safe for human eyes and body during normal operation.
  • Wide Operating Temperature Range: Designed to perform reliably in various environmental conditions, including high and low temperatures, vibrations, and fog.
  • Continuous Operation: The XT-M120Max operates continuously once powered, with no need for a power switch, making it ideal for automated systems.
  • Compact and Durable Design: Built with a robust shell to withstand challenging operational environments, ensuring long-term durability and performance.
  • Easy Integration: Suitable for integration into a wide range of applications, providing flexibility for developers and engineers.
  • Technical Support: Comprehensive support available through ToFFuture's technical team to assist with any operational or integration challenges.

Applications

  • Autonomous Vehicles: Enhance navigation and obstacle detection for self-driving cars.
  • Robotics: Improve spatial awareness and path planning for industrial and service robots.
  • Mapping and Surveying: Create detailed 3D maps for construction and land surveying.
  • Security and Surveillance: Monitor large areas and detect intrusions with high precision.
  • Smart Cities: Facilitate traffic management and urban planning with real-time data.
  • Agriculture: Optimize crop monitoring and management through precise field mapping.
  • Augmented Reality (AR): Enhance AR experiences by providing accurate environmental data.
  • Virtual Reality (VR): Improve VR environments with realistic 3D modeling.
  • Environmental Monitoring: Track changes in natural landscapes and ecosystems.
  • Logistics: Streamline warehouse operations and inventory management with precise object detection.

Export & Trade Information

ECCN: EAR99
HTS Code: 9015.10.4000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the XT-M120Max?
The XT-M120Max is a solid-state flash Lidar with 120 lines, designed and manufactured by Shanghai ToFFuture Technology Co., Ltd.
Is the XT-M120Max solid-state LiDAR sensor safe for human eyes?
Yes, the XT-M120Max has passed the Class 1 safety level and obtained the human eye safety CB certification according to the EN60825 requirement, ensuring it will not damage human eyes during normal operation.
What precautions should be taken regarding laser safety?
Avoid direct view of the laser, especially through magnifying equipment like microscopes or lenses, and do not look directly at the light cover during operation.
Does the XT-M120Max LiDAR have a power switch?
No, the XT-M120Max does not have a power switch. It will operate once the power is connected.
What should be avoided to ensure optimal performance of the XT-M120Max?
Avoid operating the XT-M120Max in environments with high/low temperatures, strong vibrations, or heavy fog, as these conditions might reduce its performance.

Got more questions? Use the inquiry form to ask the supplier directly.
