Description
High Resolution BSI Scientific CMOS
The Prime BSI Scientific CMOS camera delivers the perfect balance between high resolution imaging and sensitivity with an optimized pixel design and near perfect 95% Quantum Efficiency to maximize signal detection.
A 4 Megapixel camera with 6.5μm pixels, it captures highly detailed images with great quality while acquiring data at high frame rates. This ensures that all data is collected and no event goes undetected.
Prime BSI delivers a 100% pixel fill factor and does not rely on micro-lensing technology to increase detection, resulting in a 30% increase in sensitivity over previous sCMOS cameras.
This perfect balance in performance makes the Prime BSI the most versatile imaging camera for live-cell imaging with:
- Highest Sensitivity
- High Resolution
- Large Field of View
- High Frame Rates
- Large Dynamic Range

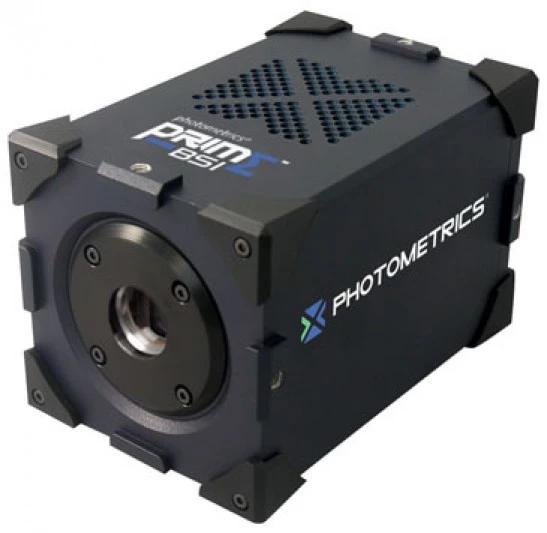

Prime BSI Scientific CMOS Camera
Specifications
| Sensor Type: | sCMOS |
|---|---|
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Square): | 6.5 um |
| Peak Quantum Efficiency: | 95 % |
| Full Frame Rate: | 94 fps |
| Bit Depth: | 12 bit |
| Readout Mode: | Rolling and Global Shutter |
| Megapixel: | 4.2 |
Download Data Sheet
Features
6.5µm x 6.5µm Pixel Area
1.1e- Read Noise (median)
47fps @ 16-bit / 94fps @ 12-bit
PrimeEnhance increases SNR 3-5X
Applications
Frequently Asked Questions
What is the resolution of the Prime BSI Scientific CMOS camera?
What is the sensitivity of the Prime BSI Scientific CMOS camera?
What is the read noise of the Prime BSI Scientific CMOS camera?
What is PrimeEnhance?
What are the primary applications of the Prime BSI Scientific CMOS camera?
