Photonic Science HAWKeye sCMOS Camera 4123

Name: Photonic Science HAWKeye sCMOS Camera 4123
Brand: Photonic Science and Engineering
Availability: InStock

Description

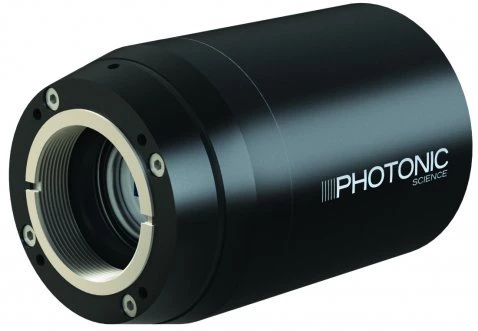

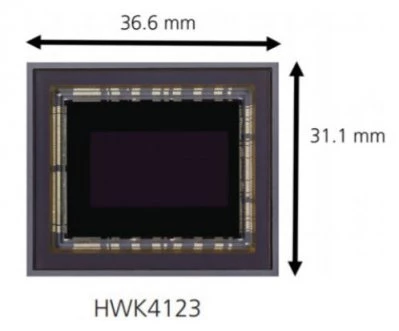

The camera uses state of the art BAE Fairchild sCMOS 4123 sensors with 0.5 electron readout noise, very low dark current and low defective pixel count. Available as monochrome or color.

Thanks to the proprietary back illumination process and thermo-electric cooling, the new Hawkeye 4123 camera allows uncompromised low light level imaging down to starlight conditions.

HD-SDI & Gigabit Ethernet Vision compliant interfaces enable easy integration into existing systems. Camera Link high speed interface that allows uncompressed video data transmission at full speed, is available on demand.

OEM versions with special form factors / cooling options are made to order for special programs into specific payload and surveillance systems.

Please use the "Request Quote" button to contact us directly.

Specifications

Sensor Type:	sCMOS
# Pixels (Width):	4096
# Pixels (Height):	2300
Pixel Size (Square):	4.6 um
Peak Quantum Efficiency:	85 %
Full Frame Rate:	60 fps
Bit Depth:	12 bit
Frame Rate:	30 fps at 16-bit digitization 60 fps at 12-bit digitization fps
HDMI Video Adaptor:	Displays Digital Video stream directly to HDMI HD screen
Video HD Output Mode 2:	4x Digital zoom over a 1920 x 1080 Region of Interest with 4.6µm pixel size
Video HD Output Mode 1:	1920 x 1080 ultra high sensitivity mode with 9.2µm effective pixel size
Interface:	Gigabit Ethernet Vision compliant
Non Linearity:	<1%
Exposure:	25 microseconds up to 250 milliseconds
ADC:	12-bit with 16-bit digital processing
Corrections:	Correction of sensor defects to provide optimal image output over varying temperature and light conditions
Dark Current:	2 electron/pixel/second at 30°C
Reading Mode:	Integrate While Read / Rolling Shutter
Sensor Read Out Noise:	0.5 electron
Full Well Capacity:	7,000 electrons

Download Data Sheet

Features

>80 dB intra-scene dynamic range
Read out noise <0.5 electron RMS
30/60 fps with HD full resolution
Excellent linearity response to varying intensities and / or exposures
HD-SDI, Camera Link, GigE Vision interface
Software option: SDK / API for Windows and Linux
HD format 1920 x 1080
Available with passive cooling
Region of interest allowing digital zooming
Colour or multi spectral filters

Applications

Long range perimeter monitoring
Persistent aerial monitoring
Situational awareness for ground vehicles
24/7 Urban surveillance
Hyper spectral imaging
Payload
Unmanned vehicles, drones and rigid inflated boat (RIB)
Maritime perimeter surveillance

Add to Watchlist (My Watchlist)

Ships from:

United Kingdom

Sold by:

Photonic Science and Engineering

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What type of sensors does the Photonic Science HAWKeye sCMOS Camera 4123 use?

The camera uses state of the art BAE Fairchild sCMOS 4123 sensors.

What is the readout noise of the camera?

The camera has a readout noise of 0.5 electrons RMS.

Can the camera be used in low light conditions?

Yes, thanks to the proprietary back illumination process and thermo-electric cooling, the camera allows uncompromised low light level imaging down to starlight conditions.

What interfaces are available for easy integration into existing systems?

The camera has HD-SDI and Gigabit Ethernet Vision compliant interfaces.

Are there different versions of the camera available?

Yes, OEM versions with special form factors and cooling options are made to order for special programs into specific payload and surveillance systems.
