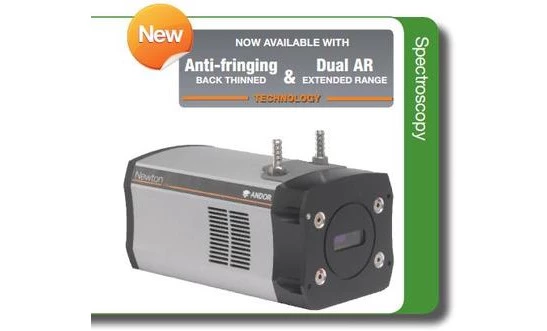

Newton DU920P CCD 27mm 3MHz Spectroscopy Camera with TE Cooling -100°C
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The Newton CCD series is designed to deliver exceptional performance in spectroscopy applications, offering a combination of ultra-fast, low-noise electronics and advanced cooling technology. With a maximum cooling capability down to -100°C, the Newton CCD ensures minimal dark current, making it ideal for high-precision measurements. The integration of Andor's Ultravac™ technology guarantees sustained vacuum integrity, ensuring consistent cooling performance and unmatched quantum efficiency over time.
Featuring a sophisticated design, the Newton CCD accommodates a variety of pixel configurations, including 1024 x 255 and 2048 x 512, with pixel sizes of 26 x 26 µm or 13.5 x 13.5 µm. This flexibility allows for optimal resolution and dynamic range, catering to a wide array of spectroscopy needs. The maximum image area of up to 27.6 x 6.9 mm further enhances its applicability in diverse scientific and industrial settings.
With the capability to capture up to 1,612 spectra per second, the Newton CCD is engineered for high-throughput operations. The intelligent Crop Mode operation facilitates broadband detection rates, making it an excellent choice for ultrafast UV, VIS, or NIR spectroscopy. This feature is particularly advantageous for applications such as 2D chemical mapping, online process monitoring, and non-invasive medical diagnostics.
The Newton CCD's robust design is complemented by its user-friendly software interface, which includes the Solis software for Spectroscopy. This comprehensive tool allows for seamless control of both the detector and spectrograph, enhancing the overall user experience. Additionally, the inclusion of a Software Development Kit (SDK) offers easy integration into complex setups, supporting various programming environments such as Matlab, Labview, Visual Basic, or C/C++.
Newton DU920P CCD 27mm 3MHz Spectroscopy Camera with TE Cooling -100°C
Specifications |
|
|---|---|
| Sensor Type: | CCD |
| # Pixels (Width): | 1024 |
| # Pixels (Height): | 255 |
| Pixel Size (Square): | 26 um |
| Peak Quantum Efficiency: | 95 % |
| Full Frame Rate: | 144 fps |
| Bit Depth: | 16 bit |
Features
- Active Pixels: 1024 x 255 (1024 x 256 for Bx-DD model) or 2048 x 512
- Pixel Size (W x H): 26 x 26 or 13.5 x 13.5 μm
- Image Area: Up to 27.6 x 6.9 mm
- Maximum Cooling: -100ºC
- Maximum Spectra per Second: 1,612
- Read Noise: As low as 2.5 e-
- Dark Current: As low as 0.0001 e-/pixel/sec
- Peak QE: Up to 95%
- Fringe Suppression Technology: Standard, with significant reduction in fringing
- Extended Range Dual-AR Option: Superior UV-NIR broadband QE
- TE Cooling: Down to -100ºC for dark current elimination
- Ultravac™ Technology: Ensures sustained vacuum integrity and performance
- Multi-Megahertz Readout: Achieves high repetition rates with low noise
- Crop Mode Operation: Up to 1,600 spectra per second
- Single UV-Grade Fused Silica Window: Best UV-NIR throughput performance
- Pixel Size Options: Down to 13.5 x 13.5 µm for high-resolution spectroscopy
- Software-Selectable Pre-Amplifier Gain: Choose between best SNR performance or dynamic range
- USB 2.0 Connection: Ideal for laptop operation and seamless integration with USB-based Shamrock spectrograph family
- Solis Software for Spectroscopy: User-friendly interface for simultaneous detector & spectrograph control
Applications
- Spectroscopy: Ideal for ultrafast UV, VIS, or NIR spectroscopy.
- 2D Chemical Mapping: Suitable for detailed chemical analysis and mapping.
- Online Process Monitoring: Real-time monitoring of industrial processes.
- Non-invasive Medical Diagnosis: Useful for medical diagnostics without invasive procedures.
- High Resolution Spectroscopy: The Newton 940 series offers 13.5 x 13.5 µm pixels for the highest UV to VIS resolution.
- High Dynamic Range Spectroscopy: The 920 series with 26 x 26 µm pixels provides excellent dynamic range for UV to VIS applications.
Frequently Asked Questions
The Newton DU920P CCD Camera is used for ultrafast UV, VIS or NIR spectroscopy, 2D chemical mapping, online process monitoring, and non-invasive medical diagnosis.
The maximum cooling temperature of the Newton DU920P CCD Camera is -100ºC.
The maximum spectra per second rate of the Newton DU920P CCD Camera is up to 1,600 with intelligent Crop Mode operation.
The pixel size of the Newton DU920P CCD Camera is 26 x 26 or 13.5 x 13.5 μm.
The maximum register well depth of the Newton DU920P CCD Camera is 1,000,000 e- in Standard mode, 600,000 e- in High Capacity mode, and 150,000 e- in High Sensitivity mode.
