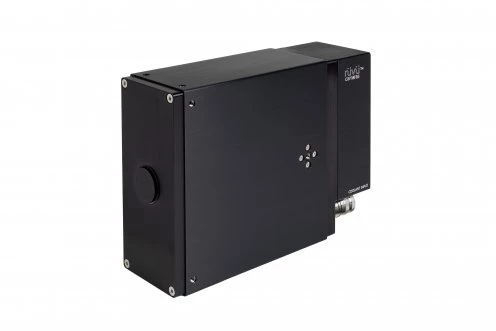

HNu 240 EMCCD High-End Adaptive Optics (AO) Optimized Camera
Description
Built for Adaptive Optics' highest performance
With frame rates over 3000 fps in full-frame the HNü 240 camera provides exactly what is to be expected from a high-end EMCCD Adaptive Optics (AO) optimized camera: virtually no noise with the high frame rates necessary to outpace atmospheric distortion.
The HNü 240 also has the 240 x 240 pixels resolution critical to focal plane wavefront sensing and direct exoplanets imaging. Integrating the patented CCD Controller for Counting Photons, it creates fewer clock-induced charges than other EMCCD cameras. In short, it is the finest camera for your next great space discovery.
HNu 240 EMCCD High-End Adaptive Optics (AO) Optimized Camera
Specifications |
|
|---|---|
| Sensor Type: | EMCCD |
| # Pixels (Width): | 240 |
| # Pixels (Height): | 240 |
| Pixel Size (Square): | 24 um |
| Peak Quantum Efficiency: | 95 % |
| Full Frame Rate: | 3015 fps |
| Bit Depth: | 14 bit |
| Operation Rate: | over 3000 fps full frame |
| Background Noise: | < 0.003 e–/pixel/frame |
| First Pixel Latency Of: | 35.5 µs |
| Readout Rate Of: | 30 MHz |
| Resolution Of: | 240 x 240 pixels with pixel area of 24 μm x 24 μm |
Features
- Patented electronics for unmatched low noise and photon counting performances
- Faster acquisition speeds with 30 MHz readout
- Windows and Linux compatibility
Applications
This EMCCD Camera is ideally suited for Space and Defense applications:
- Adaptive optics
- Space surveillance (SSA & SDA)
- Exoplanet direct imaging
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The HNu 240 camera has frame rates over 3000 fps in full-frame.
The HNu 240 camera has a resolution of 240 x 240 pixels.
The HNu 240 camera is ideally suited for space and defense applications such as adaptive optics, space surveillance, and exoplanet direct imaging.
No, the HNu 240 camera does not have noise-filtering algorithms. It generates a lower amount of noise, eliminating the risk of removing genuine photoelectrons.
The HNu 240 camera requires a communication interface of PCIe Camera Link Extended Full and is compatible with Windows (XP, 7 & 10) and Linux (CentOS & Ubuntu) operating systems.
