heliCam C4 CMOS Camera

Name: heliCam C4 CMOS Camera
Brand: Heliotis AG
Availability: InStock

Description

TIME-RESOLVED PIXEL-PARALLEL LOCK-IN DETECTION

Upscale your lock-in experiment with 277 504
parallel dual-phase demodulators
Pump-probe, spectroscopy, phase contrast,
doppler shift, holography, interferometry, etc

Specifications

Sensor Type:	CMOS
# Pixels (Width):	542
# Pixels (Height):	512
Pixel Size (Square):	24 um
Peak Quantum Efficiency:	79 %
Full Frame Rate:	1000000 fps
Bit Depth:	21 bit
Dual-phase Demodulation (in-pixel):	277 504 lock-in channels
Demodulation Frequency:	1kHz - 250kHz
Frequency Resolution:	<0.001 x demodulation frequency
Phase Resolution:	0.1 deg
Dynamic Range For Signal:	2x 10 bit
Background (common Mode) Suppression:	21 bit
Min Detectable Contrast:	1E-4 rime-resolved 1E-5 with averaging
Output:	signal magnitude and phase grayscale
Max Signal Sample Rate:	1 MSa/s per channel 277 GSa/s in total
Max Output Sample Rate:	5.6 kSa/s per channel 3.12 GSa/s in total
Memory Depth:	1000 time-resolved output frames 277 MSain total
Application:	GUI based
Programming Interface:	Python, Matlab, LabVIEW, C++, .NET

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

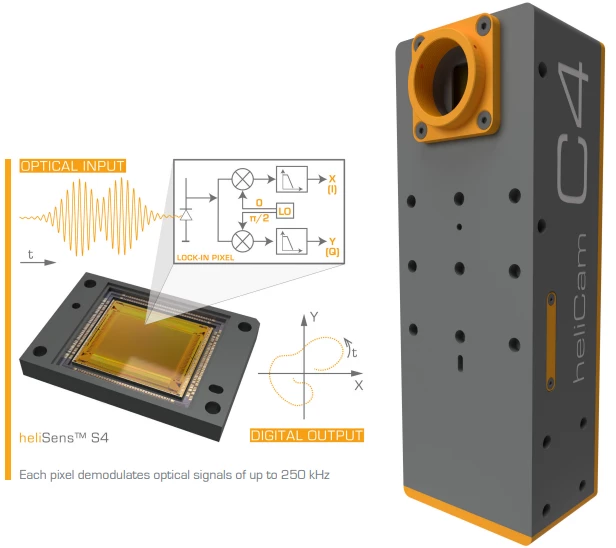

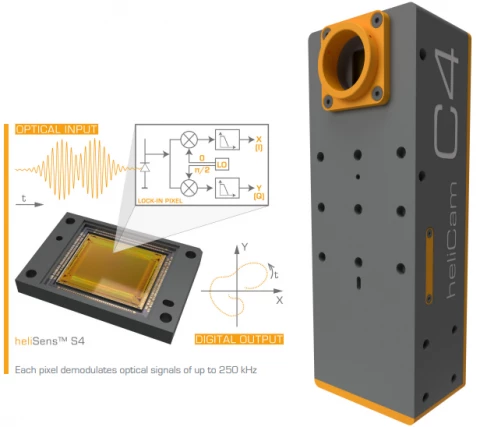

542 x 512 pixel with in-pixel lock-in amplifiers.

Each pixel demodulates optical signals of up to 250 kHz.

Applications

magnetic field microscopy using quantum defects in diamonds (N-V)
lock-in Raman spectroscopy
high sensitivity incoherent differential imaging
heterodyne interferometry
low coherence interferometry
pump-probe experiments

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

Switzerland

Sold by:

Heliotis AG

On FindLight:

since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the heliCam C4 CMOS Camera used for?

The heliCam C4 CMOS Camera is used for various applications such as pump-probe experiments, spectroscopy, phase contrast, doppler shift, holography, interferometry, and more.

What is the pixel resolution of the heliCam C4 CMOS Camera?

The heliCam C4 CMOS Camera features a pixel resolution of 542 x 512 pixels.

What is the maximum demodulation frequency of each pixel?

Each pixel of the heliCam C4 CMOS Camera can demodulate optical signals of up to 250 kHz.

What is the quantum efficiency of the heliCam C4 CMOS Camera?

The quantum efficiency of the heliCam C4 CMOS Camera varies across different wavelengths, ranging from 45.5% to 78.7%.

What programming interfaces are available for the heliCam C4 CMOS Camera?

The heliCam C4 CMOS Camera supports the heliSDK™ 4 Programming Interface, which includes a GEN<i>CAM producer DLL for client systems and examples for Python, Matlab®, LabVIEW®, C++, and .NET.
