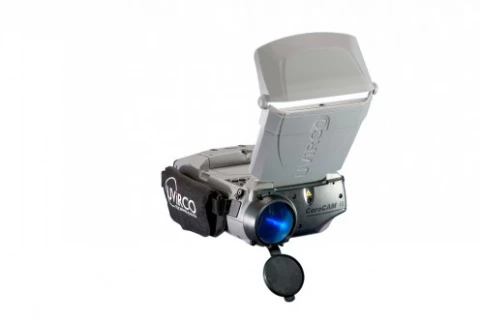

CoroCAM 6D Economical Solar Blind UV Corona Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
South Africa
-
Sold by:
-
On FindLight:
since 2020
Description
The CoroCAM 6D represents a significant advancement in UV imaging technology, building upon the legacy of the CoroCAM Solar Blind UVc imaging system. This innovative device has been meticulously redesigned with a focus on cost efficiency, achieved through cutting-edge design techniques. One of the standout improvements is its enhanced sensitivity, made possible by the integration of newly developed solar blind filter packs and a specially engineered low noise, high sensitivity detector. These advancements ensure that the CoroCAM 6D delivers exceptional performance in detecting even the smallest corona discharges.
In addition to its improved sensitivity, the CoroCAM 6D features modernized electronics that contribute to a reduction in weight, system noise, and overall size. This makes the device more portable and user-friendly, without compromising on its powerful capabilities. The camera can be factory fitted with an optional motorized module, allowing it to operate in both Solar Blind (SB) and Non-Solar Blind (NSB) modes. The NSB mode is particularly noteworthy, as it removes the SB filter from the light path, enabling more UV light to reach the detector and significantly boosting the camera's sensitivity. However, it is important to note that the NSB mode is designed for use only at night or indoors.
The CoroCAM 6D is equipped with a high sensitivity detector capable of detecting UVC emissions down to incredibly low levels, ensuring precise and reliable detection of corona discharges. The device also offers flexibility in image optimization, with settings for UV gain, threshold, or integration. Furthermore, the camera's design includes a high sensitivity color video camera with impressive resolution and low-light capabilities, allowing it to capture clear images even under near-dark conditions. The synchronized UV and visible zoom, along with automatic or manual focus controls, enhance the user experience by providing detailed and accurate imaging.
Designed for ease of use, the CoroCAM 6D features a robust, variable angle, color LED backlit LCD display optimized for daylight use, ensuring that inspections can be conducted with ease and precision. The on-screen display provides all relevant information, and the UV overlay can be customized in terms of color and translucency to highlight the discharge source effectively. With integrated GPS, onboard recording capabilities, and easily replaceable batteries, the CoroCAM 6D is a versatile and reliable tool for professionals in the field of UV imaging.
CoroCAM 6D Economical Solar Blind UV Corona Camera
Specifications |
|
|---|---|
| Sensor Type: | CCD |
| # Pixels (Width): | 768 |
| # Pixels (Height): | 576 |
| Full Frame Rate: | 60 fps |
Features
- High Sensitivity Detector: Detects UVc emissions as low as 2.05 × 10⁻¹⁸ W/cm² for precise corona detection.
- Dual Mode Operation: Optional motorized filter enables Solar Blind (daylight) and Non-Solar Blind (night/indoor) modes.
- Synchronized Zoom: UV and visible channels zoom together for accurate corona-to-structure alignment.
- Advanced Display: 5.7” LED-backlit VGA LCD optimized for daylight visibility with adjustable brightness.
- Translucent UV Overlay: Choose from preset or user-defined false-color overlays for better visualization.
- Robust Data Capture: Onboard JPEG and AVI (H.264) recording with removable SD card storage.
- Integrated GPS: Built-in GPS with booster antenna for location-tagged inspections.
- Portable & Durable: Lightweight 1.9 kg design with impact-absorbing covers and IP54 protection.
Applications
- Electrical Utility Inspections: Identify and localize corona discharges on transmission lines and substations.
- Predictive Maintenance: Monitor assets to prevent failures and reduce downtime.
- Research & Development: Analyze corona effects in laboratory or controlled environments.
- Nighttime or Indoor Testing: Enhanced sensitivity in NSB mode for dark environments.
- Condition Monitoring: Long-term field deployment for reliable performance tracking.
Frequently Asked Questions
Yes, the camera can be factory fitted with an optional motorized module which allows it to operate in both SB and NSB modes.
Yes, the camera can be operated with one hand via a multifunction keypad, with hot keys to specific functions.
The camera uses lightweight Li-ion batteries that can deliver up to 3 hours of operating time.
The CoroCAM 6D is a solar blind UV corona camera designed for detecting corona discharges.
The detector can detect UVC emissions down to 2.05×10-18 W/cm2, allowing for the detection of the smallest corona discharges.
