Description
These cameras are the backbone of the xiFLY platform. They are small, lightweight cameras with fl exible ribbon cable interfaces. Alternatively, they can be adapted to fi ber optic cabling. The small board stack in these cameras makes for fantastic fl exibility in systems with tight spatial requirements. Together with the xiFLY accessories, the xiX cameras drive performance in small spaces, from great distances, and at high speed. For embedded solutions, have a look at our carrier boards xEC2 for the computing platforms by NVIDIA (Jetson TX2, Xavier in preparation). With these and other 3rd party vendors, it is possible to build extremely compact subsystems, even mobile units, supporting multiple cameras.

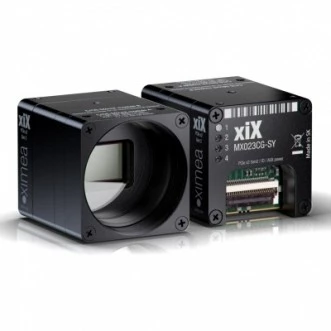

CMOSIS CMV4000 PCIe Mono Industrial Camera
Specifications
| Sensor Type: | CMOS |
|---|---|
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Square): | 5.5 um |
| Peak Quantum Efficiency: | Not Specified |
| Full Frame Rate: | 180 fps |
| Bit Depth: | 8 bit |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
Compatible with the xiFLY platform
Power and GPIO is fed through the ribbon cable reducing the need for extra cables
Super compact form factor
Connector options to fit your needs
Ideal for embedded applications and tight spaces
No frame grabber required, DMA transfer with no CPU load
Direct GPU transfer with selected NVIDIA boards under Linux
Data transmission with functionally zero latency
Flexible GPIO with optoisolated and TTL options
Low power consumption
Rugged and lightweight, aluminum alloy CNC machined housing
Applications
Vision
Inspection
OEM
Metrology
Scientific
Frequently Asked Questions
Can the CMOSIS CMV4000 PCIe Mono Industrial Camera be used for embedded applications?
Does the CMOSIS CMV4000 PCIe Mono Industrial Camera require a frame grabber?
What is the data transmission latency for the CMOSIS CMV4000 PCIe Mono Industrial Camera?
What is the xiFLY platform?
What kind of sensors are available for the CMOSIS CMV4000 PCIe Mono Industrial Camera?
