Description

These cameras are the backbone of the xiFLY platform. They are small, lightweight cameras with fl exible ribbon cable interfaces. Alternatively, they can be adapted to fi ber optic cabling. The small board stack in  these cameras makes for fantastic fl exibility in systems with tight spatial requirements. Together with the xiFLY accessories, the xiX cameras drive performance in small spaces, from great distances, and at high speed. For embedded solutions, have a look at our carrier boards xEC2 for the computing platforms by NVIDIA (Jetson TX2, Xavier in preparation). With these and other 3rd party vendors, it is possible to build extremely compact subsystems, even mobile units, supporting multiple cameras.

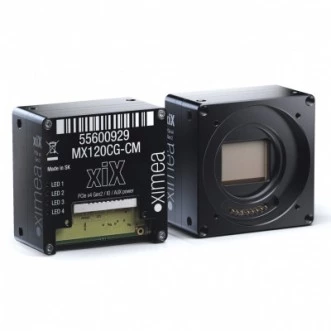

CMOSIS CMV12000 Mono 4K Embedded Camera

Specifications

Sensor Type: CMOS
# Pixels (Width): 4096
# Pixels (Height): 3072
Pixel Size (Square): 5.5 um
Peak Quantum Efficiency: Not Specified
Full Frame Rate: 130 fps
Bit Depth: 8 bit

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Compatible with the xiFLY platform
Power and GPIO is fed through the ribbon cable reducing the need for extra cables
Super compact form factor
Connector options to fit your needs
Ideal for embedded applications and tight spaces
No frame grabber required, DMA transfer with no CPU load
Direct GPU transfer with selected NVIDIA boards under Linux
Data transmission with functionally zero latency
Flexible GPIO with optoisolated and TTL options
Low power consumption
Rugged and lightweight, aluminum alloy CNC machined housing

Applications

Vision
Inspection
OEM
Metrology
Scientific

Frequently Asked Questions

What are the available sensors for the xiX cameras?
The xiX cameras are available with various Sony Pregius and all AMS/CMOSIS sensors.
What are the compatible computing platforms for the xiFLY cameras?
The xiFLY cameras are compatible with the computing platforms by NVIDIA (Jetson TX2, Xavier in preparation), and other 3rd party vendors, which can be used to build extremely compact subsystems, even mobile units, supporting multiple cameras.
What are the features of the xiX compact cameras?
The xiX compact cameras have a super compact form factor, connector options to fit your needs, no frame grabber required, DMA transfer with no CPU load, direct GPU transfer with selected NVIDIA boards under Linux, flexible GPIO with optoisolated and TTL options, low power consumption, and rugged and lightweight, aluminum alloy CNC machined housing.
What is the data transmission latency of the xiX cameras?
The xiX cameras have functionally zero latency data transmission.
What is the xiFLY platform?
The xiFLY platform is a system that includes small, lightweight cameras with flexible ribbon cable interfaces, and accessories that drive performance in small spaces, from great distances, and at high speed.

Got more questions? Use the inquiry form to ask the supplier directly.
