iStar 312T Series Time-Resolved ICCD Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The iStar 312T Series represents a pinnacle of advanced imaging technology, offering cutting-edge solutions for time-resolved imaging applications. With its 12.3 x 12.3 mm sensor and a 512 x 512 pixel array, this series is engineered to deliver exceptional performance in capturing rapid, nanosecond-scale events. This makes it an ideal choice for professionals engaged in combustion analysis, plasma plume analysis, and other applications requiring precise temporal resolution.
Designed for seamless operation, the iStar 312T Series features a USB 2.0 connection that ensures a simple plug-and-play setup, facilitating easy integration into various experimental setups. The camera's capability to achieve Multi-MHz readout speeds allows for the rapid capture of images, crucial for analyzing fast transition phenomena. Additionally, the integrated Digital Delay Generator, controlled through comprehensive software, provides users with full timing and gain control, simplifying the execution of complex experiments.
The iStar 312T Series is equipped with advanced Gen 2 and Gen 3 image intensifiers, ensuring high resolution and sensitivity across a wide spectral range from 120 nm to 1,100 nm. This flexibility is further enhanced by the camera's ability to operate at low temperatures, thanks to thermo-electric cooling down to -40°C, making it suitable for low-light applications. The intuitive Windows user interface allows for real-time control and optimization of image acquisition, ensuring that users can achieve the best possible results with minimal effort. With its robust features and user-friendly design, the iStar 312T Series stands out as a leading solution for time-resolved imaging needs.
iStar 312T Series Time-Resolved ICCD Camera
Specifications |
|
|---|---|
| Sensor Type: | iCCD |
| # Pixels (Width): | 512 |
| # Pixels (Height): | 512 |
| Pixel Size (Square): | 24 um |
| Peak Quantum Efficiency: | 50 % |
| Full Frame Rate: | 15 fps |
| Bit Depth: | 16 bit |
Features
- USB 2.0 Connection: Simple Plug & Play connection for ease of use.
- Multi-MHz Readout Speeds: Enables rapid image capture for fast transition phenomena analysis.
- Integrated Digital Delay Generator: Comprehensive software controls for seamless integration.
- Close-Coupled Gating: Achieves < 2 ns true optical gating speeds for ultimate temporal resolution.
- Lowest Insertion Delay: As low as 19 ns for quick response times.
- Fibre-Optic Coupling: Ensures high optical throughput without vignetting.
- IntelliGate™ MCP Gating: On/Off ratios >108 in the UV for superior performance.
- Photocathode Gating Rate Up to 500 kHz: Enhances Signal to Noise ratio for high-speed laser-based experiments.
- Cropped Sensor Mode: Specialized acquisition mode for the fastest image acquisition rate.

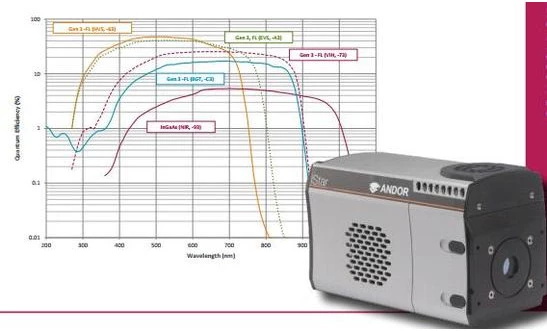

- High Resolution Gen 2 and 3 Intensifiers: Offers the highest available intensifier resolution with QE > 50% and sensitivity options from 120 nm to 1,100 nm.
- Thermo-Electric Cooling Down to -40°C: Ideal for low-light applications.
- Real-Time Control: Intuitive Windows user interface for real-time acquisition optimization.
- Photocathode Dry Gas Purge Port: Provides further EBI reduction for low-light applications.
Applications
- Combustion Analysis: Ideal for OH and CO PLIF-based studies requiring ns resolution.
- Plasma Plume Analysis: Captures ultra-fast plasma events with high temporal accuracy.
- Time-Resolved Spectroscopy: Enables rapid gating for precise spectral measurements.
- High-Speed Laser Diagnostics: Supports experiments needing >500 kHz gating rates.
- Advanced Research Imaging: Suitable for nanosecond-scale transient imaging applications.
Frequently Asked Questions
It is designed for rapid, ns-scale time-resolved Imaging, and is ideally suited for PLIF-based combustion analysis as well as Plasma plume analysis with ns time-resolution.
It offers Multi-MHz readout for acquisition in excess of 15 frames per second.
It offers laptop-friendly, USB 2.0 connectivity.
The camera has a 512 x 512 array.
Gen 2 & 3 image intensifiers with entrance input window and phosphor options are available to match wavelength range requirements from 120 nm to 1,100 nm.
