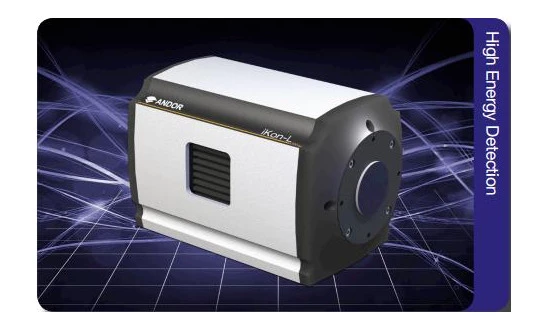

iKon-L HF 4MP High Energy Imaging Camera with Fibre Optic Detection
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The iKon-L HF is a cutting-edge imaging solution designed for high energy detection, offering unparalleled performance in scientific imaging applications. This advanced camera system integrates a high quantum efficiency (QE) sensor, boasting a peak QE of 95%, to ensure exceptional sensitivity and resolution. The camera features a back-illuminated sensor with a single bonded fibre optic plate, optimizing the transmission and spatial resolution for superior optical performance. The unique "Soft Dock" spring-loaded mount guarantees safe and secure installation against delicate instrumentation, further enhancing its usability in sensitive environments.
Engineered for precision and reliability, the iKon-L HF incorporates a thermoelectric cooling system that achieves temperatures as low as -35°C. This cooling capability minimizes dark current and reduces pixel blemishes, making it ideal for long exposure times without the need for liquid nitrogen or compressed gas. The ultra-low noise readout electronics provide a 'silent' system noise, essential for capturing high-quality images with the utmost clarity and detail. The camera's dual output offers flexibility, allowing users to choose between high sensitivity for low-light conditions or high capacity for maximum dynamic range.
The iKon-L HF is designed for seamless integration and operation, featuring USB 2.0 connectivity for easy plug-and-play functionality. Multiple mounting options, including front and side positions, offer versatility in installation, accommodating a wide range of experimental setups. With a large 2048 x 2048 pixel sensor and a pixel size of 13.5 x 13.5 µm, the camera delivers a large field of view and high resolution, ensuring accurate and detailed imaging. The inclusion of a cropped sensor mode allows for continuous imaging with fast temporal resolution, catering to dynamic measurement needs.
iKon-L HF 4MP High Energy Imaging Camera with Fibre Optic Detection
Specifications |
|
|---|---|
| Sensor Type: | CCD |
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Square): | 13.5 um |
| Peak Quantum Efficiency: | 96 % |
| Full Frame Rate: | 0.95 fps |
| Bit Depth: | 16 bit |
Features
- High Energy Imaging: Designed for scientific imaging, featuring a 4 Megapixel sensor with fibre optic indirect detection for enhanced performance.
- Large Sensor Size: 2048 x 2048 active pixels with a generous 27.6 x 27.6 mm sensor size for a large field of view and high resolution.
- Optimal Pixel Size: 13.5 x 13.5 µm pixel size ensures an optimal balance of dynamic range and resolution.
- Exceptional Sensitivity: Peak QE of 95% at 550 nm for high detector sensitivity, aligning with peak scintillator emission.
- Advanced Cooling: TE cooling to -35°C minimizes dark current and pixel blemish, ideal for long exposure times.
- Versatile Readout Options: Up to 5 MHz pixel readout with options for slower readout to reduce noise or faster speeds for dynamic processes.
- Ultra-Low Noise: Intelligent low-noise electronics provide an ultra-silent system noise environment.
- Dual Output Modes: Choose between High Sensitivity for low-light applications or High Capacity for maximum dynamic range with extensive binning.
- Cropped Sensor Mode: Specialized acquisition mode for continuous imaging with fast temporal resolution.
- Enhanced Baseline Clamp: Essential for the quantitative accuracy of dynamic measurements.
- USB 2.0 Connectivity: Easy USB plug-and-play setup with no need for a controller box.
- Flexible Mounting Options: Securely mount the camera from either the front or side position.
- Soft Dock Feature: Unique spring-loaded fibre optic design allows for safe and secure mounting against fragile instrumentation.
- High Energy Indirect Detection Imaging: Combines high transmission and spatial resolution optical performance with ultra-low noise, thanks to the iKon-L platform.
Applications
- High Energy Indirect Detection Imaging: Designed for efficient X-ray and high energy photon detection with fibre optic coupling.
- Phase Contrast Tomography: Suitable for detailed 3D imaging in scientific and industrial research.
- Low-Light Scientific Imaging: Ideal for fluorescence, scintillator-coupled, and photon-limited applications.
- Material Science and Semiconductor Analysis: Enables high resolution analysis of microstructures.
- Advanced Research Laboratories: Optimal for integration into ultrafast optical science and spectroscopy setups.
Frequently Asked Questions
The iKon-L HF camera is used for indirect high energy applications, such as high spatial resolution imaging of low flux signal where energies from soft to hard X-ray are required.
The unique feature of the iKon-L HF camera is the "Soft Dock" spring-loaded fibre optic, which allows quick and safe mounting of the camera to a wide variety of fragile instrumentation, streak cameras, image intensifiers, as well as easy placement of a full range of "off the shelf" scintillators.
The maximum readout rate of the iKon-L HF camera is 25 MHz.
The maximum cooling temperature of the iKon-L HF camera is -35°C.
The iKon-L HF camera can be fully integrated and supported in a range of third-party software, using Andor's SDK software product, such as MATLAB, LABView, and EPICs, or can be operated with Andor's own standalone software interface SOLIS.
