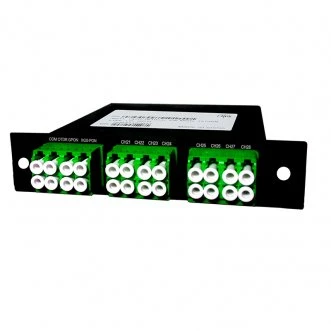

8 channels DWDM Mux/Demux ch21-28 with GPON/XGS-PON/OTDR LC/APC LGX
Description
2x Co-existence GPON/XGS-PON/OTDR PON WDM module with Dual Fiber DWDM Mux/Demux, 8 Channel ITU CH21-CH28, LC/APC, Industrial Standard LGX Module
Coexistence Element (CEx) is a passive PON WDM modules used to combine GPON with XGS-PON, NG-PON2, OTDR and RF-video/CATV traffic to a single fiber. Upgrading your existing passive optical network (PON) enables increased data speed and the delivery of additional services without fully replacing existing PON infrastructure.
GPON Passband Channel Wavelengths: 1290nm – 1330nm, 1480nm – 1500nm
XGS-PON Passband Channel Wavelengths: 1260nm – 1280nm, 1575nm – 1580nm
OTDR Monitor Passband Channel Wavelengths:1625nm – 1675nm
The 8 channel DWDM Mux Demux allows to organize 8x duplex, protocol independent parallel ITU-T G.694.1 compatible Dense Wavelength Division Multiplex (DWDM) data streams over pair of single mode optical fiber. The Mux DWDM is used with colored transceivers such as DWDM SFP, XFP, SFP+, SFP28 transceivers, it's transparent to any rate, any service multiplexing and upgrade, such applications as 1G/10G/25G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel. So it is usually flexible mix of DWDM SFP, DWDM-SFP10G-40 ( DWDM SFP 40km ), DWDM XFP and 25G DWDM SFP28 optics.
LightOptics’s industrial standard LGX module CEx portfolio of solutions meet OSP requirements of -40°C to +70°C operating temperature environments, and tested to IEC 61300-2-1, -9, -21, -22, -26 and GR-1209 requirements. LightOptics uses high quality components that ensure very high operation stability of xWDM/xPON multiplexers in the wholespectral range and perfect thermal stability.
8 channels DWDM Mux/Demux ch21-28 with GPON/XGS-PON/OTDR LC/APC LGX
Specifications |
|
|---|---|
| Operating Wavelength: | 1250 – 1620 nm |
| Operating Bandwidth: | 0.8 nm |
| Isolation (min): | 30 dB |
| Max Power Handling: | 300m W |
| Polarization Maintaining: | No |
| Vendor: | LightOptics |
Features
- High stability and reliability
- High channel
- Low Insertion Loss
- Wide pass band
- Telcordia GR-1221 Compliant
Applications
- Long Haul Networks
- Channel Add/Drop
- Dense WDM Systems
- Wavelength Routing
- Access / Enterprise Networks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The 8 channel DWDM Mux/Demux allows for the organization of 8x duplex, protocol independent parallel ITU-T G.694.1 compatible Dense Wavelength Division Multiplex (DWDM) data streams over a pair of single mode optical fiber.
The passband channel wavelength range for GPON is 1290nm - 1330nm and 1480nm - 1500nm.
Yes, the DWDM Mux/Demux can be used with colored transceivers such as DWDM SFP, XFP, SFP+, SFP28 transceivers. It is transparent to any rate and any service multiplexing and upgrade.
The applications of the DWDM Mux/Demux include long haul networks, channel add/drop, dense WDM systems, and wavelength routing in access/enterprise networks.
The LGX module CEx is tested to operate in temperature environments ranging from -40°C to +70°C, meeting OSP requirements.
