Description
The 2 µm Fused Wavelength Division Multiplexer (GK-WDM Series) from GKER Photonics Co., Ltd. is engineered to combine or separate light at 1570 nm (or 800 nm) and 2000 nm windows, making it an ideal choice for advanced optical systems. This multiplexer is specifically designed to provide superior performance with very low insertion loss, ensuring minimal signal attenuation and maintaining signal integrity across the operating wavelengths. The device also offers excellent environmental stability, making it highly reliable in various demanding conditions.
This multiplexer operates over a wide wavelength range, accommodating longer operating wavelengths of 2000 ± 20 nm and shorter wavelengths such as 1570 ± 20 nm, 800 ± 20 nm, or 650 ± 20 nm. The device is characterized by its minimal polarization-dependent loss, ensuring consistent performance regardless of the polarization state of the input signal. Additionally, the multiplexer exhibits a high return loss and directivity, contributing to enhanced signal quality and reduced interference.
With its robust design, this multiplexer is suitable for a variety of applications, including optical fiber communication, sensing, and laser systems, where precise wavelength management and signal fidelity are critical. The multiplexer’s ability to handle up to 500 mW of continuous optical power further expands its versatility, making it a reliable choice for both research and commercial use.

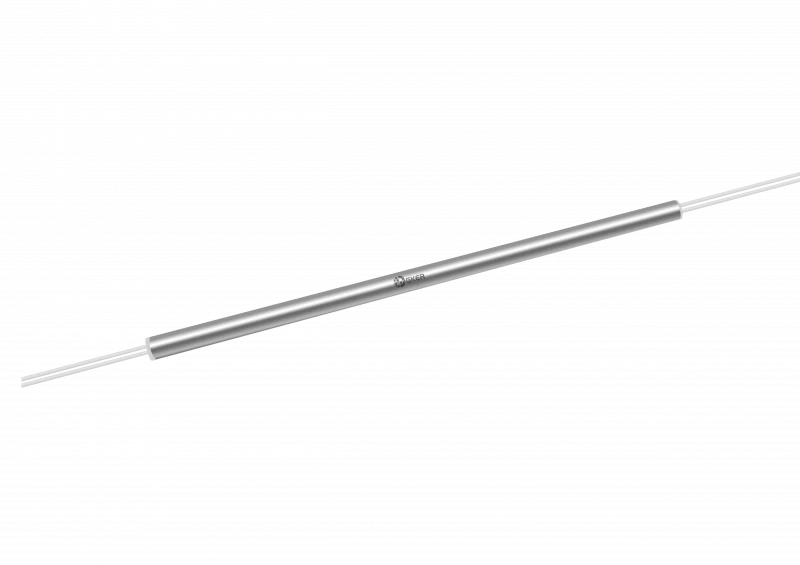

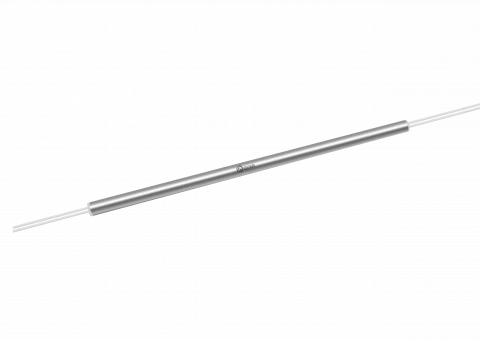

2 µm Fused Wavelength Division Multiplexer
Specifications
Operating Wavelength: | 2000 nm |
---|---|
Operating Bandwidth: | Not Specified |
Isolation (min): | 13 dB |
Max Power Handling: | 500 W |
Polarization Maintaining: | No |
Longer Operating Wavelength: | 2000 ± 20, or specified nm |
Max. Insertion Loss: | 0.6 dB |
Min. Isolation: | 13 dB |
Max. Polarization Dependent Loss: | 0.15 dB |
Shorter Operating Wavelength: | 1570 ± 20 800± 20 650 ± 20 nm |
Max. Insertion Loss: | 0.6 0.6 1.5 dB |
Min. Isolation: | 17 17 15 dB |
Thermal Stability: | ≤ 0.002 dB/℃ |
Min. Return Loss: | 55 dB |
Min. Directivity: | 55 dB |
Max. Optical Power (Continuous Wave): | 500 mW |
Operating Temperature: | - 40 to + 75 ℃ |
Storage Temperature: | - 40 to + 85 ℃ |
Features
- Wide Wavelength Compatibility: Supports light at 1570 nm, 800 nm, and 2000 nm windows
- Low Insertion Loss: Ensures minimal signal attenuation, with a maximum insertion loss of 0.6 dB
- High Isolation: Offers effective signal separation with a minimum isolation of 17 dB
- Low Polarization Dependent Loss: Maintains consistent performance with a maximum PDL of 0.15 dB
- Excellent Environmental Stability: Operates reliably across a wide temperature range, from -40°C to +75°C
- High Power Handling: Capable of managing up to 500 mW of continuous optical power
Applications
- Fiber Lasers: Provides efficient wavelength management in high-power fiber laser systems, ensuring minimal signal loss and high isolation
- Optical Amplifiers: Enhances the performance of optical amplifiers by enabling precise wavelength separation and combination with low insertion loss
- WDM Systems: Optimizes Wavelength Division Multiplexing (WDM) systems by ensuring stable operation across a broad temperature range and handling high optical power
- Optical Communications: Supports reliable data transmission in optical communication networks by maintaining excellent environmental stability and high isolation
- Biomedical Sensing: Enables accurate and efficient signal management in biomedical sensing applications, especially in environments with varying temperatures
Frequently Asked Questions
What are the operating wavelengths of this Wavelength Division Multiplexer?
What is the maximum insertion loss for the device?
What is the minimum isolation provided by this multiplexer? T
What level of environmental stability does this multiplexer offer?
What is the maximum optical power handling capacity?
What types of fiber are compatible with this device?
What is the operating temperature range?
What are the dimensions of the device?
How is the multiplexer typically used? This multiplexer is widely used in fiber lasers, optical amplifiers, WDM systems, optical communications, and biomedical sensing applications.
Is the device customizable?
