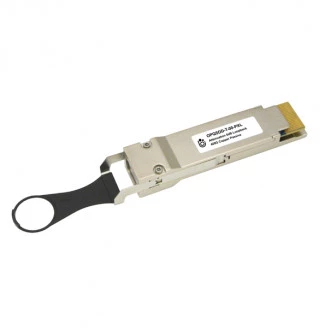

400G QSFP-DD Passive Loopback Module for Testing
Description
The 400G QSFP-DD passive electrical loopback module is used for high speed testing application for QSFP-DD host ports. It provides an efficient way to verify QSFP-DD ports during R&D test, production testing and field testing.
QSFP-DD Loopback Module Specification
Differential Impedance: 100 +/- 10Ohm
Supply Voltage: 3.3V (Typical)
Operating Temperature: 0°C to 70°C
Storage Temperature: -20°C to 80°C
Durability: 50 cycles
Mating Force: 40N max. (Insetion Force), 30N max. (Extraction Force)
Module Retention: 125N min.
400G QSFP-DD Passive Loopback Module for Testing
Specifications |
|
|---|---|
| Signaling Rate Per Lane (Transmitter): | 400 Gb/s |
| Signaling Rate Per Lane (Receiver): | 400 Gb/s |
| Lane Center Wavelength: | 850-1550 nm |
| Vendor Name: | LightOptics |
| Form Factor: | QSFP-DD |
Features
Broadband operation capabilities for data rate up to 400 Gbps
Available with and without power consumption
Customized EERPOM or QSFP-DD MSA EERPOM
Compliant with 25G/lane NRZ and 50G/lane PAM4
Excellent EMC/EMI performance
RoHs 2.0 compliance
Applications
The loopback module is a 400Gbps Quad Small Form Factor Pluggable QSFP-DD loopback module for testing QSFP-DD transceiver ports on host/system boards.
By substituting a full-featured QSFP-DD transceiver, the electrical loopback provides a cost effective method for QSFP-DD port testing. We suggest test 400GBase-ZR and OSFP 800G optics before using.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The module is used for high-speed testing of QSFP-DD host ports.
The module has a differential impedance of 100 +/- 10Ohm, operates at a supply voltage of 3.3V, and has an operating temperature range of 0°C to 70°C.
The module has a durability of 50 cycles.
The module has a minimum retention force of 125N.
The loopback module is suitable for testing QSFP-DD transceiver ports on host/system boards, such as switches, routers, NICs, networked storage systems, and high-performance computing.
