Description

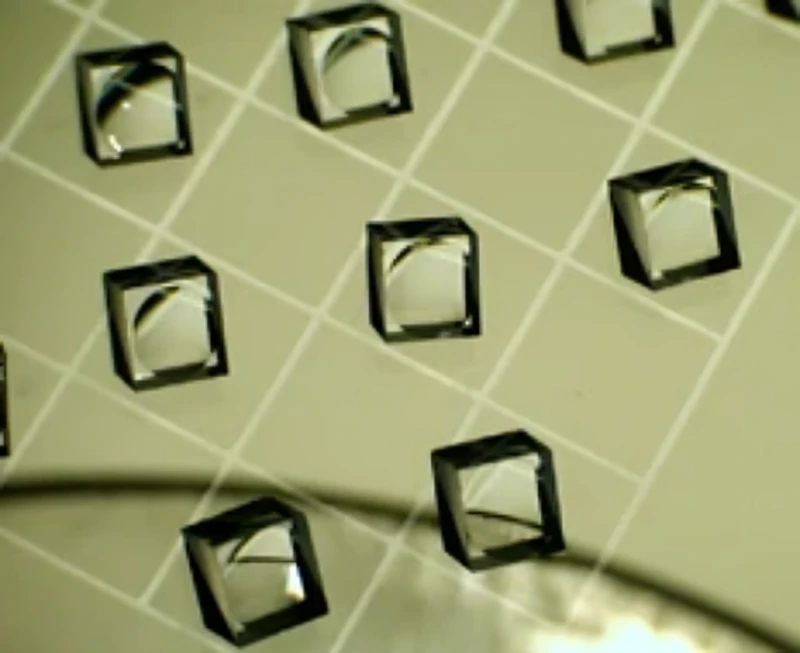

The Custom Prism Assembly with Air Gap from Sinoptix is designed for high-precision optical applications, providing an essential component for various optical assemblies. This assembly is available in multiple materials, including N-BK7, H-K9L, and fused silica, ensuring compatibility with diverse optical systems.

With dimensions ranging from 0.5mm to 250mm, the assembly can be tailored to meet specific project requirements, and the air gap can be adjusted to as low as 5µm for optimal performance. Each assembly features advanced anti-reflective (AR) coatings and black varnishing to minimize stray light and enhance image quality. Precision cementing techniques are utilized during assembly to ensure reliable optical alignment and durability.

Ideal for use in imaging systems, laser applications, and scientific research, our Custom Prism Assembly with Air Gap is your go-to solution for achieving exceptional optical performance. Contact us today to discuss your specific dimensions and design needs.

Custom Prism Assembly with Air Gap

Specifications

Material: BK7, FS, UVFS, CaF2, Other
Dimension (A): Not Specified
Dimension (B): Not Specified
Dimension (C): Not Specified
Air Gap Dimension: Adjustable down to 5µm
Coatings: Anti-Reflective (AR) and Black Varnishing
Assembly Method: Precision Cementing

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Customizable Dimensions: Available in sizes from 0.5mm to 250mm to suit a variety of applications
  • Material Options: Choose from N-BK7, H-K9L, fused silica, and other optical materials (contact us for feasibility)
  • Adjustable Air Gap: Air-gap dimensions can be tailored down to 5µm for enhanced optical performance
  • Advanced Coatings: Features anti-reflective (AR) coatings and black varnishing to reduce stray light and improve transmission
  • Precision Assembly: Manufactured with precision cementing for reliable optical alignment and stability

Applications

  • Optical Assemblies: Ideal for integration into complex optical systems for improved performance
  • Imaging Systems: Enhances image quality in cameras, microscopes, and other imaging devices
  • Laser Applications: Supports high-performance laser setups requiring precise light manipulation
  • Scientific Research: Essential for experimental setups in laboratories and research institutions
  • Industrial Applications: Used in various optical devices for measurement, testing, and inspection

Frequently Asked Questions

What materials are available for the prism assembly?
The Custom Prism Assembly is available in N-BK7, H-K9L, fused silica, and other optical materials upon request.
What are the available dimensions for the assembly?
Dimensions range from 0.5mm to 250mm, allowing for various optical assembly needs.
What is the minimum air gap dimension?
The air gap can be adjusted down to 5µm for optimal optical performance.
Are coatings included with the prism assembly?
Yes, the assembly features anti-reflective (AR) coatings and black varnishing to reduce stray light and enhance transmission.
How is the assembly manufactured?
The assembly is constructed using precision cementing techniques to ensure accurate optical alignment and durability.
Can I customize the design of the prism assembly?
Absolutely! We encourage customers to contact us with their specific dimensions and design requirements for a custom solution.
What applications are suitable for this prism assembly?
It is ideal for optical assemblies, imaging systems, laser applications, scientific research, and industrial uses.
How do I place an order?
To place an order, please contact us directly with your specifications, and our team will assist you through the process.
What performance characteristics can I expect?
You can expect high precision, minimal stray light, and reliable optical alignment, ensuring optimal performance in your applications.

Got more questions? Use the inquiry form to ask the supplier directly.
