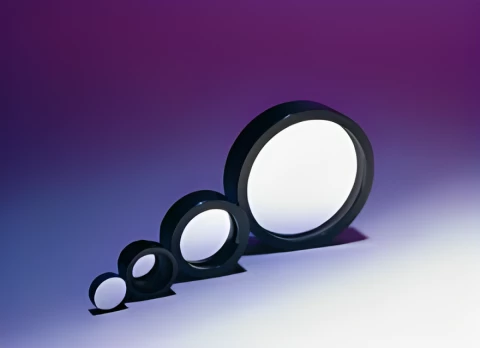

Name: VUV-UV Neutral Density Filter 120 - 200nm FND1-2D-V (2.0" Diameter)
Brand: Teledyne Acton Optics
Availability: InStock

Description

Teledyne Acton Optics presents VUV/UV Neutral Density Filters, meticulously engineered metallic films over-coated with a dielectric protective layer. These filters provide precise control over light intensity in the VUV wavelength range of 120 nm – 200 nm and the UV wavelength range of 200 nm – 320 nm.

Each filter is individually calibrated for transmittance and supplied with a transmittance curve. Special order items include ND5 and ND6 filters calibrated at strong spectral lines like 160.8 nm and 253.7 nm. VUV neutral density filters are coated on UV-grade MgF2, while UV neutral density filters are provided on UV-grade fused silica.

Specifications

Attenuator Type:	Reflective
Shape:	Round
Size:	50.8 mm

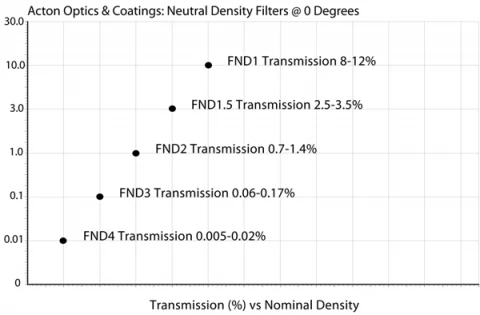

Optical Density:	1
Nominal Transmission:	10 %
Transmission Range:	8-12 %
Angle Of Incidence (AOI):	0°

Download Data Sheet

Features

Wide Range Control: Offers optical densities from 0.3 to 6.0, allowing precise manipulation of light intensity
High Transmission: Provides consistent transmission values, ensuring accurate results in various applications
Calibration: Individually calibrated and supplied with transmittance curves for quality assurance
Custom Options: Special order items ND5 and ND6 available, calibrated at specific spectral lines
Durable Build: Coated on UV-grade MgF2 for VUV filters and UV-grade fused silica for UV filters, ensuring longevity
