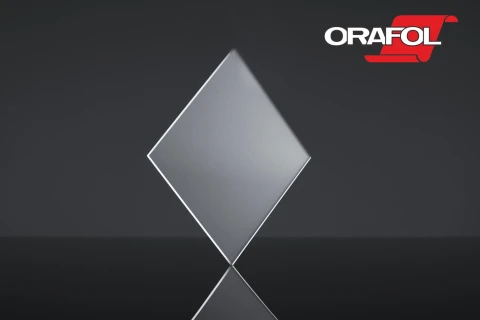

Thumbnail of Surface Diffuser BP 302 photo 1

Description

The ORAFOL SN 302 is a premium surface diffuser designed to enhance light distribution in various applications, including architectural, commercial, and industrial lighting. Constructed from high-quality PMMA (Polymethyl Methacrylate), the SN 302 provides exceptional optical performance and durability. Its innovative design ensures uniform light distribution, effectively minimizing glare and enhancing visual comfort.

This diffuser features a unique surface structure that allows for superior illumination while maintaining high transmission efficiency. With a maximum clear aperture of 370 mm x 370 mm, it can be customized to fit various project requirements. The SN 302 is available in different shapes and sizes, with options for additional coatings to optimize its performance for specific applications.

Whether used in LED lighting systems, retail displays, or machine vision applications, the Orafol SN 302 offers a reliable solution for achieving the desired lighting effects. Its robust design guarantees long-lasting performance, making it an ideal choice for demanding environments.

Surface Diffuser BP 302

Visit the ORAFOL Fresnel Optics Store

Specifications

Transmission: 92 – 92 %
Angular Tolerance (total): 8 %
Uniformity (minimum): Not Specified
Clear Aperture: 125 mm
Symmetric Half Angle: ± 4.0°
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Targeted light distribution
  • Homogenizes irregular light
  • Controls local intensity peaks
  • Compatible with microstructured plastic optics
  • Easy insertion into flat side

Applications

  • Architectural lighting
  • Automotive lighting
  • Display and signage lighting
  • General illumination
  • Photography and studio lighting

Frequently Asked Questions

What material is the Orafol SN 302 made of?
The Orafol SN 302 is constructed from high-quality PMMA (Polymethyl Methacrylate).
What is the maximum clear aperture of the SN 302?
The maximum clear aperture of the SN 302 is 370 mm x 370 mm.
Can the SN 302 be customized?
Yes, the SN 302 can be customized in various shapes and sizes to meet specific project requirements.
What applications is the SN 302 suitable for?
The SN 302 is suitable for architectural, commercial, and industrial lighting applications, among others.
Does the SN 302 help reduce glare?
Yes, it features a unique surface structure that minimizes glare and enhances visual comfort.
Are there coating options available for the SN 302?
Yes, the SN 302 offers various coating options to optimize its performance for specific applications.
How does the SN 302 improve light distribution?
The SN 302 ensures uniform light distribution, effectively enhancing illumination while maintaining efficiency.
Is the SN 302 durable for long-term use?
Yes, it is designed for long-lasting performance, making it ideal for demanding environments.
How is the SN 302 installed?
The lightweight design of the SN 302 allows for easy installation in various lighting setups.
Can the SN 302 be used in machine vision systems?
Yes, the SN 302 is suitable for machine vision applications due to its superior light diffusion.
