Cosine Correctors for Accurate Light Transport

Did You Know?

Did you know that an ideal cosine corrector does not produce a perfectly uniform output—it intentionally follows a Lambertian cosine law so that the collected signal is proportional to the true irradiance over a full 180° field of view? In practice, many cosine diffusers only approximate this behavior within ±3–5% over limited angles (e.g., 0–80°), and performance degrades sharply near grazing incidence due to refraction and edge losses. High-accuracy designs often combine a bulk diffuser with a refractive dome or integrating element to compensate for Fresnel effects and maintain a near-ideal angular response.

Frequently Asked Questions

A cosine corrector is an optical diffuser designed so that its angular response follows Lambert’s cosine law, meaning the detected signal is proportional to the cosine of the incident angle. It is used in irradiance, illuminance, and radiance measurements to ensure that off-axis light is properly weighted, producing accurate, angle-integrated readings that represent the true flux density at a surface.

What Are Cosine Correctors?

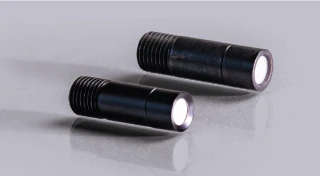

Cosine Correctors are optical components designed to provide a cosine angular response for incident light, matching Lambert’s cosine law. By diffusing and redistributing incoming radiation, a cosine corrector enables a detector to measure irradiance or radiant flux from wide incident angles without angular bias. In light transport setups, Cosine Correctors are typically mounted in front of photodiodes, spectrometers, or fiber-coupled sensors to convert directional radiance into uniform, angle-corrected signals.

Typical Specifications of Cosine Correctors

Key parameters when evaluating Cosine Correctors include:

  • Spectral range: Common options cover UV (200–400 nm), visible (400–700 nm), and NIR (700–2500 nm), with coatings and diffuser materials optimized for the required band.
  • Cosine response error: Deviation from ideal cosine behavior across the specified field of view, often expressed as percent error at given angles (e.g., ±3% at 60°).
  • Aperture and diameter: Input aperture size influencing collection area and coupling efficiency to the downstream detector or fiber.
  • Interface: Fiber connector type (e.g., SMA, FC/PC) or direct detector mounting geometry, critical for integration in light transport assemblies.
  • Transmission and loss: Overall throughput of the cosine corrector, including diffuser losses, affecting required source power and detector sensitivity.
  • Environmental stability: Operating temperature, humidity tolerance, and material robustness under UV exposure or high-power illumination.

Use Cases in Light Transport Systems

Cosine Correctors are widely used in radiometry, photometry, and spectroscopy. Typical applications include absolute irradiance calibration of spectrometers, LED and lamp flux measurements, skylight and solar irradiance monitoring, integrating sphere output characterization, and uniform collection in fiber-based light transport setups. By using Cosine Correctors, engineers ensure that measurements represent true hemispherical irradiance rather than being biased toward normal incidence.

Buyer Guidance on FindLight

When comparing Cosine Correctors on FindLight, start from your spectral band and required cosine response accuracy. Match the connector type to your existing fibers or detectors, and verify that the active diameter and transmission meet your signal-to-noise requirements. Review datasheets for angular response curves, calibration options, and environmental limits. You can contact manufacturers directly through FindLight to request technical clarifications or custom Cosine Correctors and obtain quotes. No registration is required to submit inquiries or RFQs, enabling fast evaluation and procurement for your light transport projects.
