Description

The ORAFOL SN 1334 Surface Diffuser is an advanced optical solution designed to deliver precise light diffusion, ideal for high-demand applications such as machine vision, lighting, and sensor technologies. This diffuser ensures excellent homogenization and efficiency enhancement, providing uniform light distribution that improves performance in various illumination systems.

Constructed with premium materials like PMMA (Polymethyl methacrylate) and Polycarbonate, the SN 1334 diffuser offers superior durability and long-lasting performance. Its large clear aperture of up to 370 mm x 370 mm makes it adaptable for various light control applications, while the option for different surface structures and lenslet arrangements allows for a virtually endless range of configurations.

With precision diamond-milled tools used for its fabrication, the SN 1334 offers exceptional accuracy and control over light diffusion, reducing glare and unwanted light artifacts. Custom finishing options, including specialized coatings and surface structuring on both sides, further enhance its versatility, making it ideal for applications that demand high-quality illumination control and reliability.

The ORAFOL SN 1334 Surface Diffuser is customizable to meet specific project needs, providing designers and engineers with the flexibility to tailor the diffuser to unique optical requirements.

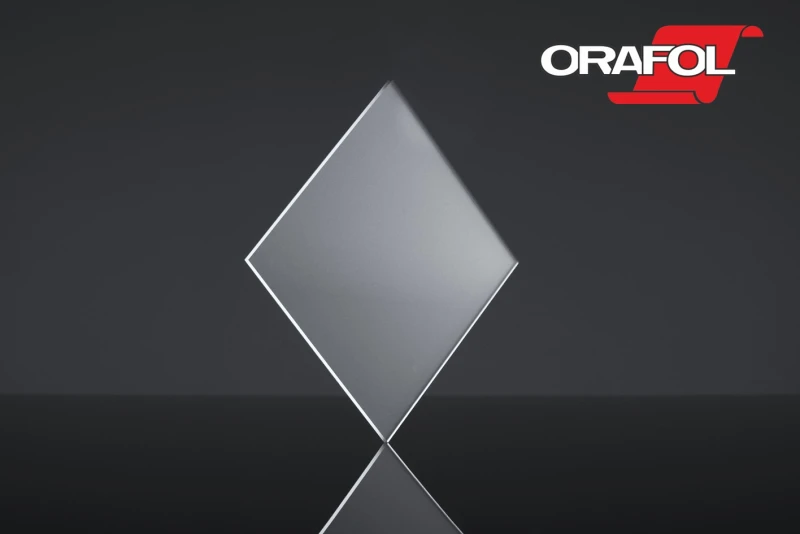

Surface Diffuser SN 1334

Specifications

Transmission: 92 – 92 %
Angular Tolerance (total): 15.6 %
Uniformity (minimum): Not Specified
Clear Aperture: 231.0 mm
Clear Aperture: 231.0 mm
Symmetric Half Angle: ± 7.8°
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Targeted light distribution
  • Homogenizes irregular light
  • Controls local intensity peaks
  • Compatible with microstructured plastic optics
  • Easy insertion into flat side

Applications

  • Architectural lighting
  • Automotive lighting
  • Display and signage lighting
  • General illumination
  • Photography and studio lighting

Frequently Asked Questions

What materials are used in the construction of the ORafol SN 1334 diffuser?
The diffuser is made from high-quality materials such as PMMA and Polycarbonate.
What is the maximum clear aperture available for the ORafol SN 1334?
The maximum clear aperture is 370 mm x 370 mm.
Can the lenslet arrangement be customized?
Yes, the lenslet arrangement can be virtually any configuration without constraints to lines and columns.
Are custom coatings available for this diffuser?
Yes, different coatings are available based on the specific needs of the application.
What applications is the ORafol SN 1334 best suited for?
It is ideal for machine vision systems, illumination systems, optical sensors, and display technologies.
Can the product be cut into customized shapes?
Yes, the diffuser can be cut into virtually any desired shape to meet specific project requirements.
What is the maximum radius of the lens in this product?
The maximum lens radius is 6.5 mm.
Is surface structuring available on both sides of the diffuser?
Yes, the product allows for structuring on both sides to enhance performance.
Does the product support advanced light homogenization?
Yes, it is engineered to provide excellent light homogenization and diffusion for enhanced illumination efficiency.
Are special sizes and specifications available upon request?
Yes, custom sizes and specifications can be requested to suit specific applications.

Got more questions? Use the inquiry form to ask the supplier directly.
