Description

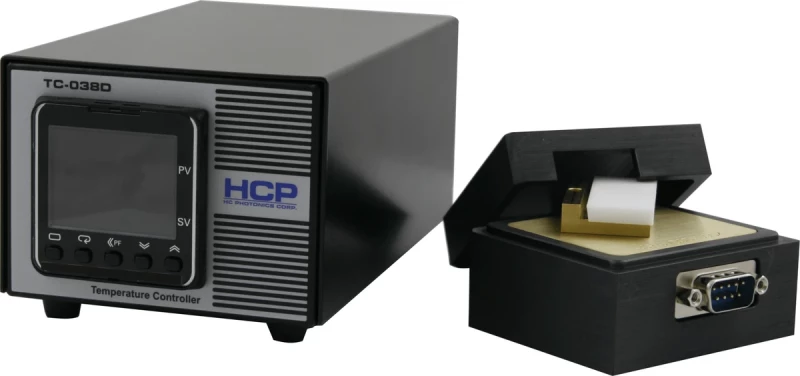

Temperature control set is specifically designed for thermal management of different kind of non-linear crystals including bulk and waveguide such as PPLN, PPLT, PPKTP, KTP and etc. Temperature controller, TC-038D, goes along with different ovens (OV-30D, OV-50D, WG OVENs) with extreme temperature tunability up to 200 deg. C and stability. TC-038D is programmable, with the common I/O interface through USB connection.
Oven Set/IR cards
HC Photonics Corp.
Specifications
| Temperature Stability: | 25 – 200 degC |
|---|---|
| Present Temperature Range: | 25 – 200 degC |
| Temperature Setting Precision: | 0.1 – 0.1 degC |
| Angle Adjustment: | Not Specified |
| Max Crystal Aperture Size: | 5 mm |
| Max Crystal Length: | 80 mm |
Download Data Sheet
Features
- PID control
- Auto-tuning & programmable
- Tuning step: 0.1°C
- Temperature tuning range: ambient temp. to 200°C
- Storage temperature: -20°C to 70°C
- Maximum power consumption: 24V/60W
- Communication Interface: USB
- GUI program included
- Dimension: 150(L) x 90(W) x 65(H) mm^3
- Oven options: OV-30D (~203g) or OV-50D (~380g)
- TC-038D: ~900g
- CE, RoHS/REACH compliance
- Excellent temperature stability
Applications
- Wavelength conversion
- Lab use
- Excellent temperature stability
