Description

Nonlinear crystal (NLC) materials which are used in higher laser frequency generation requires phase matching to be kept in stable temperature conditions, therefore crystal holder plays key part in this role. To avoid temperature drift, issues with water absorption for hygroscopic crystals, temperature of NLC needs to be controlled by a stable crystal oven.

Most of the NLC materials uses angle tuned phase matching, therefore crystal holders, depending on interaction type (Type I or Type II) shall have XY angle tuning. Some of NLC can be also oriented for Non Critical Phase Matching (NCPM). The NCPM requires high temperature ovens, which phase matching is tuned by means of precise temperature.



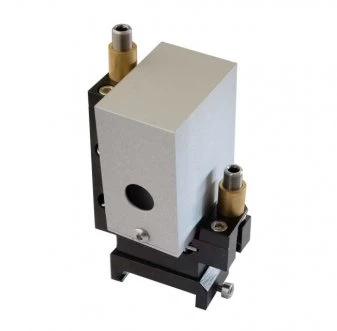

Nonlinear Crystal Oven

Geola Digital Ltd

Specifications

Temperature Stability: 0.1 – 0.1 degC
Present Temperature Range: 25 – 250 degC
Temperature Setting Precision: 0.1 – 0.1 degC
Angle Adjustment: 3 – 3 deg
Max Crystal Aperture Size: 25 mm
Max Crystal Length: 50 mm
Temperature Control Stability DTC-A, DTC-B, DTC-C: ± 0.1 °C
Temperature Control Stability DTC-HT: ± 0.005 °C
Temperature Range DTC-A, DTC-B, DTC-C: 25…71 °C
Temperature Range DTC-HT: 25…250 °C
Crystal Aperture Size DTC-A: 2×2mm, 3×3mm, 4×4mm, 5×5mm
Crystal Aperture Size DTC-B: 6×6mm, 8×8mm, 10×10mm, 12×12mm, 15×15mm
Crystal Aperture Size DTC-C: From 16x16mm to ≥25×25mm
Crystal Aperture Size DTC-HT: 3×3mm, 4×4mm, 5×5mm, 6×6mm
Maximal Crystal Length: up to 50 mm
Optical Window: YES, 3mm
Power Supply: 24 V DC
Control Interface: USB

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • The Digital Thermo Control (DTC) nonlinear crystal oven models DTC-A, DTC-B, DTC-C have excellent temperature control stability of less than +/- 0.1°C in the range of 25–71°C, at the same time assuring precise and stable mechanical angle-tuning construction. The new DTC-HT model stability is +/- 0.005°C in the range of 25–250°C.

  • The DTC–A model ovens are designed and recommended for crystals with apertures 2×2, 3×3, 4×4, 5x5mm and length up to 30mm.
  • The DTC-B is specified for crystals with apertures 6×6, 8×8, 10×10, 12×12 and 15x15mm, length up to 30mm.

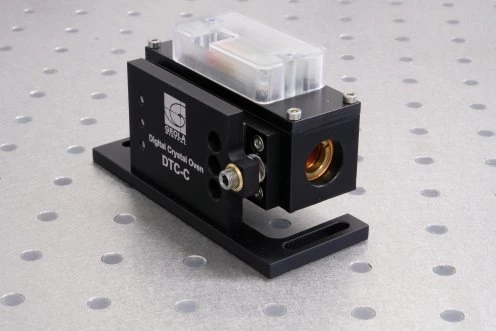

  • Larger aperture size and length exceeding 30 mm of nonlinear crystals are supported by DTC-C oven.

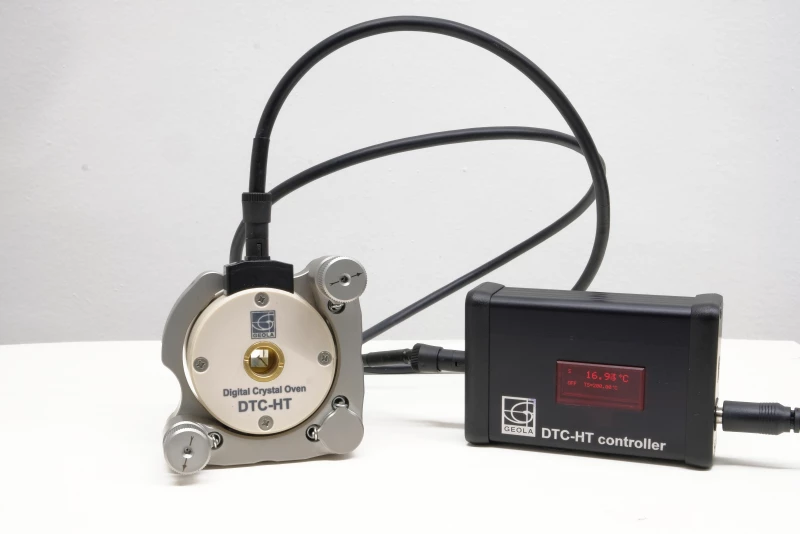

  • The new DTC-HT model designed for high temperature (up to 250°C) NCPM application. The standard model accepts crystals for up to 6×6 mm apertures and up to 50 mm in length.

  • The new DTC-GIANT model designed to secure and stabilize large size nonlinear crystals, for example KDP/DKDP crystals. The DTC-GIANT model is fully customizable and  accepts crystals with apertures from 50x50mm to 200×200 mm or more and up to >50 mm in length.

Example of DTC-HT application:

  • LBO Type I NCPM SHG @ 1064 nm (θ=90°, φ=0°), T = 149 °C.

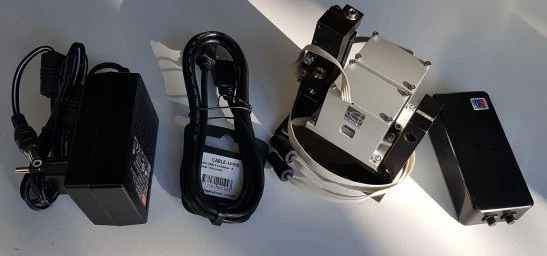

  • Temperature settings are stored in internal memory of thermo-controller and can be easily changed via USB cable via Geola Thermo-Tool software provided along with any of DTC oven model.
  • After temperature is set and DC 24V power supply is applied, oven works in completely autonomous regime (DTC doesn’t require any cable connection with PC).

Applications

  • OEM Parts for pulsed laser manufacturing (communication library is provided)
  • Assuring stable-temperature controlled phase matching
  • Protection housing for hygroscopic crystals
  • High temperature oven for NCPM

Frequently Asked Questions

What is the purpose of a nonlinear crystal oven?
The nonlinear crystal oven is used to control the temperature of nonlinear crystal materials used in higher laser frequency generation to maintain stable phase matching.
What is the temperature control stability of the DTC nonlinear crystal oven models?
The DTC nonlinear crystal oven models (DTC-A, DTC-B, DTC-C) have excellent temperature control stability of +/- 0.1°C in the range of 25–71°C. The DTC-HT in the range of 25–250°C.
What crystal aperture sizes are supported by the DTC-A model oven?
The DTC-A model oven is designed and recommended for crystals with apertures 2×2, 3×3, 4×4, and 5x5mm, with a length of up to 30mm.
Can the oven be customized for larger crystal apertures?
Yes, on request, Geola can manufacture ovens for crystals with apertures up to >60×60 mm or bigger.
How are temperature settings adjusted for the DTC oven models?
Temperature settings are stored in the internal memory of the thermos-controller and can be easily changed via a USB cable using the Geola Thermo-Tool software provided with any of the DTC oven models.
Is it available DTC oven for high temperature NCPM?
The new DTC-HT model designed for high temperature (up to 250°C) NCPM application.

Got more questions? Use the inquiry form to ask the supplier directly.
