Description

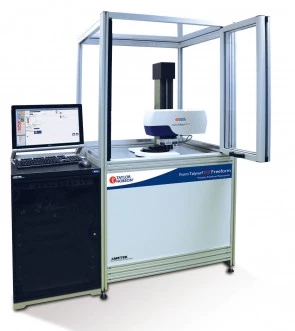

The Taylor Hobson Form Talysurf® PG Freeform is a versatile, high-resolution metrology system specifically designed for the accurate measurement and analysis of complex freeform optics. Leveraging decades of Taylor Hobson’s expertise in ultra-precision manufacturing and measurement, the system provides unrivalled accuracy, reproducibility, and low-noise operation for even the most demanding optical surfaces.
Capable of performing 3D raster and radial measurements, the Form Talysurf® PG Freeform supports the characterization of a wide range of optics, including spheres, aspheres, diffractives, and freeforms. It accommodates modern mathematical descriptions such as toric, bi-conic, anamorphic asphere, ellipsoid, NURBS, Zernike polynomials, and even direct cloud-of-points data, ensuring compatibility with the latest optical design approaches.
With its optimized FEA-driven mechanical design and advanced software interface, users can easily configure and analyze precise freeform measurements. The system offers a gauge range of up to 28 mm, resolution of 0.8 nm, and the ability to measure slopes up to 55° while maintaining exceptionally low form error.
From research laboratories to advanced manufacturing facilities, the Form Talysurf® PG Freeform provides the complete solution for accurate freeform optics measurement and validation.
Form Talysurf PGI Freeform
Specifications |
|
|---|---|
| Light Source Type: | Coherent Continuous Wave (CW) |
| Light Source Wavelength: | 800 nm |
| Sample Reflectivity: | 1 – 1 % |
| RMS Repeatability: | <0.001 nm |
| RMS Precision: | <0.001 nm |
| Magnification: | Other / Not specified |
| Application: | 3D Imaging |
| Software Compatibility: | Other / Not specified |
| Z-axis Sensing Technology: | Not Specified |
Features
- Ultra-Precision Measurement: The LuphoScan system offers non-contact 3D form measurement of aspheric surfaces using advanced MWLI® technology, suitable for steep, small, and large aspheres.
- Wide Measurement Range: Capable of handling optics with diameters up to 420 mm, making it ideal for a variety of optical components.
- Comprehensive 3D Analysis: Provides full 3D form measurement for aspheres, spheres, flats, and slight freeforms, ensuring detailed analysis and precision.
- Automated Aspheric Optics Measurement: The Form Talysurf® PGI Dimension offers fully automated, one-touch measurement for both 2D and 3D analysis of spheres, aspherics, and diffractives up to 300 mm in diameter.
- Time-Saving Software: Advanced software features, such as the Aspherics Analysis Utility (AAU), enhance production efficiency and improve error detection.
- Versatile Measurement Capabilities: Suitable for virtually any part, including steep, shallow, large, and small components, ensuring flexibility in various applications.
- Innovative Developments: Recent advancements include the Form Talysurf® PGI Freeform and LuphoSharp, reflecting Taylor Hobson's commitment to pioneering metrology solutions.
Applications
- Freeform Optics Manufacturing: Ensures accurate measurement of complex optical geometries.
- Asphere and Sphere Production: Provides high-precision analysis for quality control.
- Diffractive and Hybrid Optics: Validates advanced optical components with precision.
- Optical R&D: Supports development of innovative freeform designs using modern equations.
- Metrology Laboratories: Provides a complete solution for both standard and custom optical surface validation.
Frequently Asked Questions
LuphoScan is an ultra-precision non-contact 3D form measurement system for aspheric surfaces based on MWLI technology.
The Form Talysurf PGI Freeform is used for high precision freeform optics measurement, performing surface finish and form analysis for freeform optics.
The Form Talysurf PGI Dimension can measure optics with a diameter of up to 300mm.
The Form Talysurf PGI Freeform has a measurement range of 140mm x 140mm with a resolution of 4µm.
The Form Talysurf PGI Freeform is manufactured by Taylor Hobson, the world leader in surface and form metrology.
