Description
The Optical Frequency Comb Sources manufactured by Pilot Photonics in Ireland are non-contact inspection tools used in optical metrology. They provide high-precision, high-resolution measurements for various applications, including sensing, spectroscopy, and telecommunications. These sources generate a series of optical frequencies that are evenly spaced and precisely known, making them useful for measuring the frequency and wavelength of light with extreme accuracy. The compact size and ease of use make these Optical Frequency Comb Sources ideal for both laboratory and field applications.

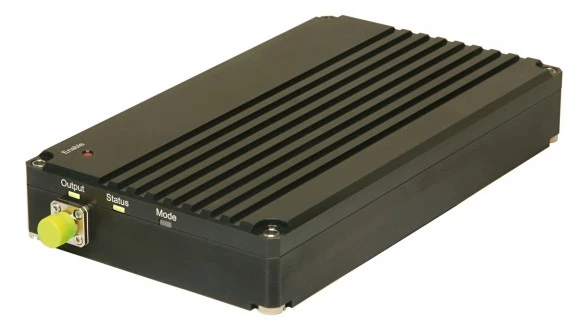

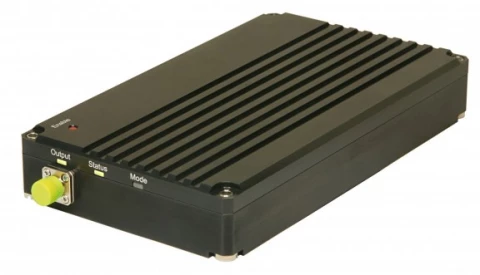

- Optical Frequency Comb Source

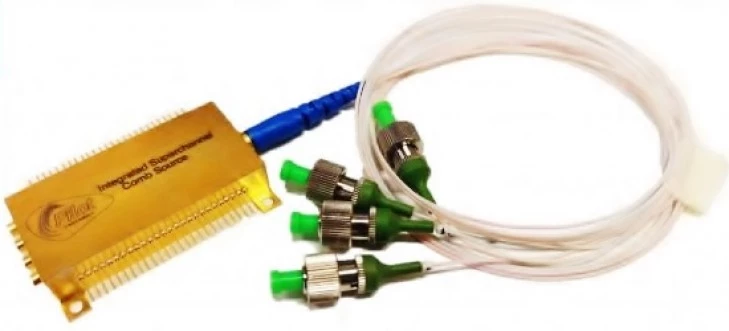

- PIC Comb Source Module
- Pico Second Optical Pulse Source
Optical Frequency Comb Sources - Mfr. Pilot Photonics (Ireland)
Specifications
| Comb Spacing: | 2500 MHz |
|---|---|
| Center Wavelength: | 1550 nm |
| Oscillator Spectral Range: | >10 nm |
| Comb Wavelength Range And Options: | 500 - 1050 nm, 1050 - 2100 nm, 530 - 1080 nm, 500 - 1100 nm |
Download Data Sheet
Features
- Stable and Robust Optical Frequency Comb
- Low Optical Line width 300 kHz
- PM Fiber Coupled output
- Simple Push Button Operation
- Tunable Free Spectral Range with High Accuracy.
Applications
- Terbit Super Channel Transmitters
- Flexgrid Wavelength Division Multiplexing
- Generation of Millimetre-wave and Terahertz Signals
- Generation of 5G Signals
- Ultra Wideband (UWB) over fiber HS video distribution
- Optical Signal Processing (Eg. Optical Clock Recovery)
- Precision Optical Measurements
- Spectroscopy
- Sensor Interrogation
Frequently Asked Questions
What are Optical Frequency Comb Sources?
Optical Frequency Comb Sources are non-contact inspection tools used in optical metrology that provide high-precision, high-resolution measurements for various applications, including sensing, spectroscopy, and telecommunications.
What are the features of the Optical Frequency Comb Sources?
The Optical Frequency Comb Sources have a stable and robust optical frequency comb, low optical linewidth (<300 kHz), tunable free spectral range with high accuracy, strong phase correlation between comb lines, PM fiber coupled output, simple push-button operation, and a wide range of free spectral ranges and wavelengths available.
What are the applications of the Optical Frequency Comb Sources?
The Optical Frequency Comb Sources can be used for terabit superchannel transmitters, flexgrid wavelength division multiplexing, generation of millimeter-wave and terahertz signals, generation of 5G signals, ultra-wideband (UWB) over fiber HD-video distribution, optical signal processing (e.g. optical clock recovery), precision optical measurements, spectroscopy, and sensor interrogation.
What is the free spectral range of the Optical Frequency Comb Sources?
The free spectral range of the Optical Frequency Comb Sources ranges from 5-15 GHz, with larger free spectral ranges under development. The free spectral range can be tuned over a range by an external voltage.
What is the average output power of the Optical Frequency Comb Sources?
The average output power of the Optical Frequency Comb Sources ranges from 0-10 dBm.
