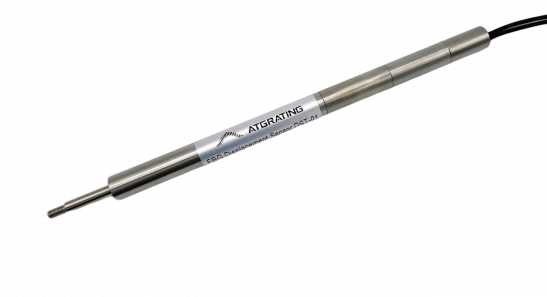

FBG Displacement Sensor DST-01

Name: FBG Displacement Sensor DST-01
Brand: AtGrating Technologies Co, Ltd.
Availability: InStock

Description

FBG Displacement Sensor DST-01 is used for long-term measurement of structural beams and large buildings or other concrete, steel structures, building settlements, displacements and landslides. The sensor is installed by pulling rope, which can accurately and quickly measure the beam settlement, the displacement and deformation of the tunnel structure and the contact surface of the building. At the same time, a temperature FBG is installed inside the sensor, which can perform automatic temperature compensation.

Specifications

Measurement Range:	10 – 150 mm
Measurement Resolution:	0.05 %
Center Wavelength:	1460 ~ 1610 nm
Measurement Accuracy:	0.5 % F.S.
Temperature Compensation:	Built-in
Material:	Stainless steel
Dimension:	Φ22 x 234 mm
Installation:	Mechanical fixation
Pigtail Length:	1m Φ3mm armored cable
Optical Connector:	FC/APC
Operating Temperature:	-20 ~ +80 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High precision, high reliability, high stability
Built-in automatic temperature compensation
All-optical measurement, intrinsically safe
Long-term zero point stability
Easy to install

Applications

Measure the displacement of different depths in bridges, dams, tunnels and various underground works
Measurement of land subsidence deformation, slope slip deformation
Long-term displacement monitoring of steel structure base under force and deformation

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

China

Sold by:

AtGrating Technologies Co, Ltd.

On FindLight:

since 2022

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the FBG Displacement Sensor DST-01 used for?

The FBG Displacement Sensor DST-01 is used for long-term measurement of structural beams, large buildings, and other concrete or steel structures to measure settlements, displacements, and landslides.

How is the sensor installed?

The sensor is installed by pulling rope, allowing for accurate and quick measurement of beam settlement, displacement, and deformation.

Does the sensor have temperature compensation?

Yes, the sensor has a built-in automatic temperature compensation feature.

What are the key features of the FBG Displacement Sensor DST-01?

The key features include high precision, high reliability, high stability, all-optical measurement, intrinsically safe design, and long-term zero point stability.

What are the applications of this sensor?

The sensor can be used to measure displacement in bridges, dams, tunnels, and underground works, as well as for land subsidence deformation and slope slip deformation measurement. It is also suitable for long-term displacement monitoring of steel structure bases under force and deformation.
