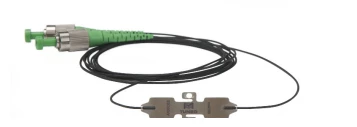

os4100 Optical Temperature Compensation Sensor
Description
The os4100 Temperature Compensation Sensor has a similar design and installation procedure to the os3100 Optical Strain Gage. When mounted in close proximity, it is a convenient choice for temperature compensation of the os3100. The os4100 Temperature Compensation Sensor is designed to make fiber handling easy and sensor installation fast and repeatable. It is based on fiber Bragg grating (FBG) technology.
The os4100’s stainless steel carrier holds the FBG in tension and protects the fiber during installation. Since there are no epoxies holding the fiber to the carrier, long term stability is ensured by design. The universal attachment feature on the os4100 carrier design allows fastening by weld, epoxy or screw.
This sensor can be used alone or in series as a part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and cumbersome than comparable electronic gage networks. The os4100 Temperature Compensation Gage is qualified for use in harsh environments and delivers the many advantages inherent to all FBG based sensors.
With each sensor, Luna provides a Sensor Information Sheet listing the calibration coefficients needed to convert wavelength information into engineering units. Luna’s ENLIGHT Sensing Software provides a utility to calculate and then record, display, and transmit data for large networks of sensors.
os4100 Optical Temperature Compensation Sensor
Specifications |
|
|---|---|
| Operation Temperature Range: | -40-150deg C |
| Temperature Sensitivity: | 28.9 pm/degC |
| Response Time: | - Sec |
| Probe Diameter: | - mm |
| Probe Length: | - mm |
Features
- Qualified to same rigorous standards used for comparable electronic gages. Rugged, permanent weldable package.
- Fast, simple, repeatable installation.
- Designed specifically for temperature compensation of os3100 strain gages relief.
- Fast, simple, repeatable installation.
- Spot-weld, epoxy, or screw mounted.
- Double ended design supports multiplexing of many sensors on one fiber.
- Micron Optics’ patented micro opto-mechanical technology.
- Included in ENLIGHT’s sensor templates – allows for quick and easy optical to mechanical conversions.
Applications
- Structures (bridges, dams, tunnels, mines, buildings, oil platforms)
- Energy (wind turbines, oil wells, pipelines, nuclear reactors, generators)
- Transportation (railways, trains, roadways, specialty vehicles, cranes)
- Marine vessels (hull, deck, cargo containers)
- Aerospace (airframes, composite structures, wind tunnels, static and dynamic tests).
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Luna provides a Sensor Information Sheet listing the calibration coefficients needed to convert wavelength information into engineering units and ENLIGHT Sensing Software to calculate and record, display, and transmit data for large networks of sensors.
The os4100 Temperature Compensation Sensor is spot-welded, epoxied, or screw mounted and is designed to make fiber handling easy and sensor installation fast and repeatable.
The os4100 Temperature Compensation Sensor is a fiber optic sensor designed for temperature compensation of the os3100 Optical Strain Gage.
The os4100 Temperature Compensation Sensor can be used in structures, energy, transportation, marine vessels, and aerospace applications.
The os4100 Temperature Compensation Sensor is based on fiber Bragg grating (FBG) technology.
