Description
FBG Temperature Sensor ST-01 uses stainless steel sleeve packaging technology, which has good anti-corrosion and sealing performance. High-strength armored optical cable is used for fiber lead in and out, which is suitable for harsh measurement environment, can be directly buried in concrete structure for long-term temperature monitoring. The ST-01 can be used for temperature monitoring on either the surface or inside of different structures, and can be used for tunnel fire protection, buried temperature measurement, etc.

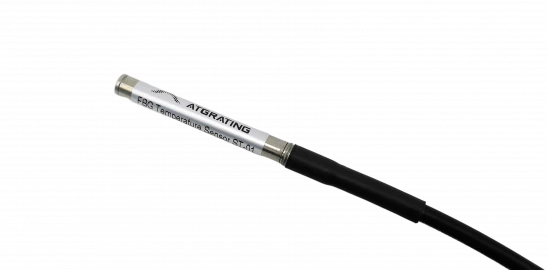

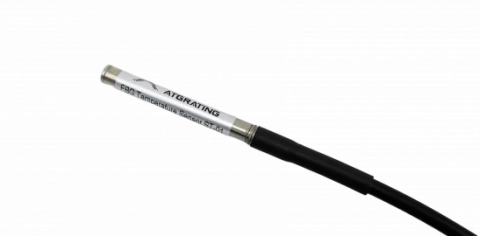

FBG Temperature Probe ST-01
Specifications
| Operation Temperature Range: | -20 – 80 deg C |
|---|---|
| Temperature Sensitivity: | 10 pm/degC |
| Response Time: | Not Specified |
| Probe Diameter: | 8 mm |
| Probe Length: | 63 mm |
| Center Wavelength: | 1460 ~ 1610 nm |
| Temperature Resolution: | 0.1 °C |
| Temperature Accuracy: | 1 °C |
| Material: | Stainless steel |
| Installation: | Paste, Embedded |
| Pigtail Length: | 1m Φ3mm armored cable |
| Optical Connector: | FC/APC |
Download Data Sheet
Features
- High precision and high resolution
- Superior performance in harsh environments and resistance to mechanical fatigue
- Free from electromagnetic interference
- Stainless steel metal structure package
- Surface mounted or embedded installation
- Widely application and long service life
Applications
- Quasi-distributed temperature monitoring of civil engineering structures such as bridges, dams, tunnels, buildings, etc.
- Temperature-sensing fire detection and automatic alarm monitoring in industrial engineering
- Used as temperature compensation for other sensors such as strain, pressure, displacement, etc.
Frequently Asked Questions
What is the FBG Temperature Probe ST-01 used for?
The FBG Temperature Probe ST-01 is used for temperature monitoring on the surface or inside different structures, such as tunnel fire protection and buried temperature measurement.
What are the features of the FBG Temperature Probe ST-01?
The FBG Temperature Probe ST-01 has high precision and high resolution, superior performance in harsh environments, resistance to mechanical fatigue, and is free from electromagnetic interference. It also has a stainless steel metal structure package and can be surface mounted or embedded.
What are the applications of the FBG Temperature Probe ST-01?
The FBG Temperature Probe ST-01 can be used for quasi-distributed temperature monitoring of civil engineering structures, temperature-sensing fire detection and automatic alarm monitoring in industrial engineering, and as temperature compensation for other sensors.
What is the center wavelength range of the FBG Temperature Probe ST-01?
The center wavelength range of the FBG Temperature Probe ST-01 is 1460~1610 nm.
What is the operating temperature range of the FBG Temperature Probe ST-01?
The operating temperature range of the FBG Temperature Probe ST-01 is -20~+80 °C.
