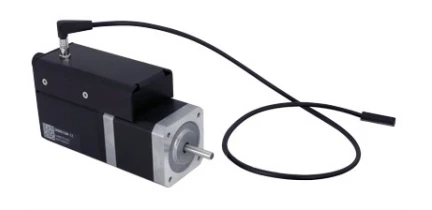

Stepper Motor X-NMS17C-W
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
The X-NMS is the latest innovation in stepper motor technology, designed to simplify motion control for a wide range of applications. This advanced NEMA 17 stepper motor comes with a built-in controller, offering unmatched convenience and efficiency. The compact design integrates seamlessly into various systems, providing a robust solution for precise motion control without the need for external controllers.
One of the standout features of the X-NMS is its ease of integration. The motor is equipped with a detachable home sensor and a small magnet, ensuring accurate positioning and reliable operation. For enhanced functionality, an optional magnetic away sensor can be added. The motor operates as a standalone unit, requiring only a standard 24 V or 48 V power supply, making it an ideal choice for streamlined setups.
The X-NMS offers versatile connectivity options to suit various needs. It can be connected to any computer via USB 2.0 or RS-232 ports, allowing for easy control and monitoring. Additionally, the motor can be daisy-chained with other Zaber products, sharing both data and power through convenient locking 4-pin M8 connectors. This capability enables a cohesive and efficient system setup, reducing the need for multiple power sources.
For users who prefer manual operation, the X-NMS features an indexed knob that provides intuitive control over the motor's movements. This allows for versatile operation even in environments where computer control is not available or desired. The robust design and user-friendly interface make the X-NMS a reliable choice for both automated and manual motion control applications.
Stepper Motor X-NMS17C-W
Specifications |
|
|---|---|
| Microstep Size (default Resolution): | 490.866 urad |
| Accuracy (unidirectional): | 4.3625 mrad |
| Maximum Speed: | 2650.1 rpm |
| Minimum Speed: | 4607.592 urad/s |
| Integrated Controller: | Yes |
| Integrated Encoder: | No |
Features
- NEMA 17 Stepper Motor with Built-in Controller: This motor includes an integrated controller for simplified motion control.
- High Precision Microstepping: Achieve up to 25,600 microsteps per revolution for precise motion control.
- Impressive Speed and Torque: Capable of speeds up to 2,650 rpm and a maximum torque of 30 N·cm (42.5 oz·in).
- Home Sensor and Magnet Included: Comes with a detachable home sensor and small magnet; an optional magnetic away sensor is available.
- Daisy-Chain Capability: Easily daisy-chain data and power with other X-series products for expanded functionality.
- Versatile Connectivity: Connects to USB 2.0 or RS-232 ports and features locking 4-pin M8 connectors for secure connections.
- Manual Control Option: An indexed knob allows for convenient manual operation without a computer.
- Wide Compatibility: Operates with a standard 24 V or 48 V power supply and shares power across multiple units.
- Compact and Robust Design: NEMA 17 motor frame with 5 mm shaft diameter and 4 M3 tapped holes for mounting.
- Reliable Performance: Features magnetic home and away sensors, LED indicators, and complies with RoHS and CE standards.
- Operational Range: Functions within a temperature range of 0 to 50 °C.
- Lightweight Construction: Weighs 0.58 kg (1.279 lb) for easy integration into various systems.
Applications
- Automation Systems: Integrate into automated systems for precise control of movement.
- Robotics: Suitable for robotic applications requiring accurate and repeatable motion.
- 3D Printing: Use in 3D printers for precise layer formation and high-resolution prints.
- CNC Machines: Ideal for CNC machines where precise motor control is crucial.
- Laboratory Equipment: Implement in lab devices for accurate positioning and movement.
- Medical Devices: Integrate into medical equipment requiring precise motion control.
- Conveyor Systems: Use in conveyor systems for synchronized movement and control.
- Textile Machinery: Suitable for textile machines needing precise and reliable motor control.
- Packaging Equipment: Implement in packaging systems for consistent and accurate operation.
- Industrial Automation: Use in various industrial automation applications for enhanced efficiency and control.
Frequently Asked Questions
The maximum speed of the X-NMS17C-W stepper motor is 2,650 rpm.
The maximum torque of the X-NMS17C-W stepper motor is 30 N"Åcm.
Yes, the X-NMS17C-W stepper motor can be manually controlled with an indexed knob even without a computer.
The X-NMS17C-W stepper motor has an RS-232 communication interface.
Yes, the chain of X-Series products shares power, so multiple X-Series products can use a single power supply.
