Description

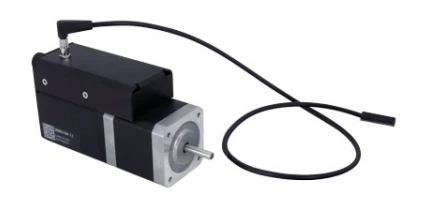

The latest addition to our lineup, the X-NMS stepper motor, is designed to bring unparalleled precision and control to your motion control applications. This NEMA 17 size stepper motor comes with a built-in controller, making it a compact and efficient solution for various automation needs. With its capability to achieve up to 25,600 microsteps per revolution, the X-NMS ensures smooth and precise movements, setting a new standard in the industry.
The X-NMS stepper motor is engineered for simplicity and ease of use. It operates as a standalone unit, requiring only a standard 24 V or 48 V power supply, eliminating the need for complex setups. The inclusion of a detachable home sensor and small magnet enhances its functionality, providing reliable reference points for consistent performance. Additionally, the optional away sensor offers further customization to suit your specific requirements.
Connectivity is a breeze with the X-NMS. It features convenient locking, 4-pin, M8 connectors, ensuring secure connections and easy integration with other Zaber products. The ability to daisy-chain data and power with X-series products allows for streamlined setup, reducing clutter and simplifying your workspace. Whether you're connecting via USB 2.0 or RS-232, the X-NMS provides versatile communication options to fit seamlessly into your existing systems.
Designed with user convenience in mind, the X-NMS includes an indexed knob for manual control, offering flexibility for operations without a computer. Its robust construction and compliance with RoHS and CE standards ensure reliability and safety in various environments. With a maximum speed of 2,650 rpm and a torque of 30 N·cm, the X-NMS is a powerful tool, ready to tackle demanding tasks with ease.
Stepper Motor X-NMS17C
Specifications |
|
|---|---|
| Microstep Size (default Resolution): | 490.866 urad |
| Accuracy (unidirectional): | 4.3625 mrad |
| Maximum Speed: | 2650.1 rpm |
| Minimum Speed: | 4607.592 urad/s |
| Integrated Controller: | Yes |
| Integrated Encoder: | No |
Features
- NEMA 17 Stepper Motor with Built-In Controller: Integrates seamlessly for efficient motion control.
- High Precision Microstepping: Achieve up to 25,600 microsteps per revolution for smooth and precise movements.
- Impressive Speed and Torque: Capable of reaching up to 2,650 rpm with a maximum torque of 30 N·cm (42.5 oz·in).
- Comprehensive Sensor Options: Includes a home sensor and small magnet, with an optional magnetic away sensor for enhanced functionality.
- Daisy-Chain Capability: Easily connect and share power with other X-Series products using the daisy-chain feature.
- Versatile Power Requirements: Operates with a standard 24 V or 48 V power supply.
- Convenient Manual Control: Features an indexed knob for manual adjustments, allowing for flexible operation without a computer.
- Multiple Connectivity Options: Connects via USB 2.0 or RS-232 port, supporting Zaber ASCII and Zaber Binary communication protocols.
- Secure Connections: Equipped with locking 4-pin M8 connectors for robust and secure unit connections.
- Compact and Durable Design: NEMA 17 frame size with a motor shaft diameter of 5 mm, ensuring compatibility and durability.
- Environmentally Compliant: RoHS and CE compliant, ensuring safety and environmental standards are met.
- Operating Temperature Range: Functions efficiently in temperatures ranging from 0 to 50 °C.
- Weight: Lightweight design at 0.55 kg (1.213 lb), facilitating easy integration into various systems.
Applications
- 3D Printers: Enhance the precision and control of 3D printing processes with this advanced stepper motor.
- CNC Machines: Improve the accuracy and efficiency of CNC operations, ensuring high-quality machining results.
- Robotics: Ideal for robotic arms and automation systems, providing reliable and precise motion control.
- Medical Devices: Suitable for applications requiring precise positioning and movement, such as in medical imaging equipment.
- Laboratory Automation: Facilitate automated laboratory processes with precise and repeatable motion control.
- Factory Automation: Enhance the efficiency of assembly lines and manufacturing processes with seamless integration.
- Optical Equipment: Use in optical devices where precise lens positioning and adjustment are crucial.
- Textile Machinery: Improve the control and accuracy of textile machinery for better fabric production.
- Packaging Equipment: Streamline packaging processes with accurate and reliable motion control.
- Scientific Instruments: Perfect for instruments that require precise sample positioning and handling.
Frequently Asked Questions
The Stepper Motor X-NMS17C is a NEMA size 17 stepper motor with a built-in controller and motor encoder.
The Stepper Motor X-NMS17C has a maximum speed of up to 2,650 rpm and a torque of 30 N"Åcm.
Yes, the Stepper Motor X-NMS17C comes with a detachable home sensor with mounting screw and a small magnet.
Yes, the Stepper Motor X-NMS17C can be connected to the USB 2.0 or RS-232 port of any computer.
The Stepper Motor X-NMS17C requires a standard 24 V or 48 V power supply.
