Motorized XY Gantry System G-LSQ150A150A-T4
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's G-LSQ Series Gantry Systems are engineered to deliver exceptional performance and versatility in motion control applications. These systems are meticulously designed around the robust LSQ Series linear stages, ensuring reliability and precision. The G-LSQ Series offers a complete, turn-key solution that includes everything you need to get started: the X-MCB2 controller, a power supply, and all necessary accessories. Whether you prefer a pre-assembled unit on a custom breadboard or separate components for integration into your own setup, these gantries provide the flexibility to meet your specific requirements.
Designed for multi-axis applications, the G-LSQ Series is ideal for scenarios where heavier loads necessitate the additional support of dual lower axis stages. This design also allows for easy access to the area beneath the system, making it highly practical for various industrial and research applications. The coupled lead screw design enhances stiffness, ensuring quick and precise responses to control inputs. With the capability to support loads of up to 18 kg and achieve movement speeds of up to 330 mm/s, these gantries are built to handle demanding tasks with ease.
The G-LSQ Series stands out for its exceptional build quality and attention to detail. The use of precision lead screws and roller bearings ensures smooth and accurate motion, while the magnetic home sensor provides reliable limit or home sensing. The system's compatibility with the X-MCB2 Series two-axis stepper motor controllers further enhances its functionality, allowing for seamless integration and operation. With a focus on simplifying motion control, the G-LSQ Series gantries are an excellent choice for those seeking a robust, high-performance solution in motion control technology.

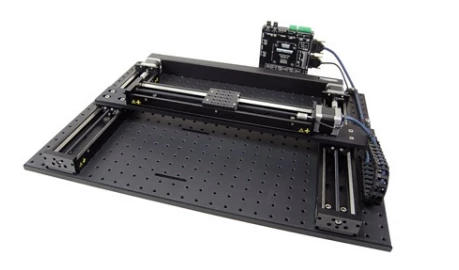

Motorized XY Gantry System G-LSQ150A150A-T4
Specifications |
|
|---|---|
| Microstep Size (default Resolution): | 0.09921875 um |
| Axes Of Motion: | Two |
| Built-in Controller: | No |
| Travel Range: | 150 mm |
| Accuracy (unidirectional): | 45 um |
| Backlash: | >=6 um |
| Maximum Speed: | 23 mm/s |
| Minimum Speed: | 0.00093 mm/s |
| Maximum Centered Load: | 180 N |
Features
- Multiple Travel Options: Choose from 150, 300, or 450 mm travel per axis for versatile application needs.
- High-Speed Performance: Achieve speeds up to 330 mm/s or 100 N thrust, depending on your lead screw choice.
- Controller Compatibility: Specifically designed for use with the X-MCB2 Series two-axis stepper motor controllers.
- Turn-Key Solution: Includes X-MCB2 controller, power supply, and all necessary accessories for easy operation.
- Flexible Integration: Available pre-assembled on a custom breadboard or as separate components for custom setups.
- Robust Design: Supports loads up to 18 kg with a coupled lead screw design for high stiffness and precise response.
- Precision and Accuracy: Features unidirectional accuracy of 45 µm and repeatability of less than 4 µm.
- Versatile Speed Control: Maximum speed of 23 mm/s and a fine speed resolution of 0.00093 mm/s.
- Stepper Motor Efficiency: Equipped with a 2-phase stepper motor, rated at 1200 mA/phase and 9.6 Watts power.
- Durable Construction: Built with a precision lead screw and roller bearing guide type for reliable performance.
- Environmental Resilience: Operates effectively within a temperature range of 0 to 50 °C.
- Compliance and Safety: RoHS and CE compliant, ensuring safety and environmental standards are met.
Applications
- Automated Inspection Systems: Enables precise scanning and positioning for industrial quality control and metrology.
- Pick-and-Place Automation: Supports efficient material handling and component placement in manufacturing processes.
- Microscopy and Imaging: Provides stable and precise sample movement for advanced imaging and analysis workflows.
- Research and Development: Ideal for experimental setups requiring accurate multi-axis motion control.
- Laser Processing Systems: Facilitates precise laser scanning, cutting, or marking applications.
Frequently Asked Questions
Zaber's G-LSQ Series gantry systems are based on the robust and fast LSQ Series linear stages. These systems offer a complete turn-key solution including the X-MCB2 controller, power supply, and all the accessories needed to operate the system.
The G-LSQ Series gantries have 150, 300 or 450 mm travel per axis, can move at speeds up to 330 mm/s, and are designed for use with X-MCB2 Series two-axis stepper motor controllers.
These gantries will support loads up to 18 kg.
The G-LSQ Series gantries are designed for multi-axis applications where heavier loads require the additional support of two lower axis stages or where access is required to the area under the system.
The accuracy (unidirectional) is 45 µm and the repeatability is less than 4 µm.
