Description

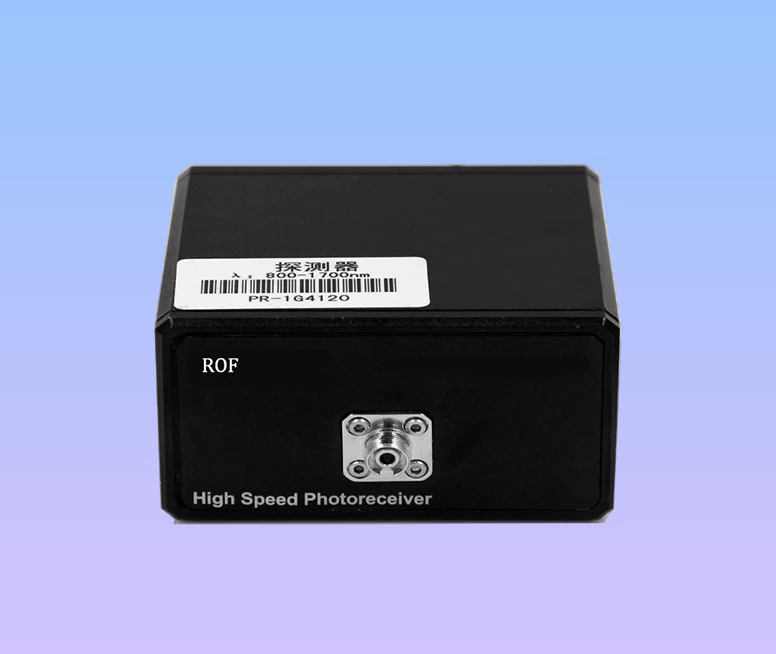

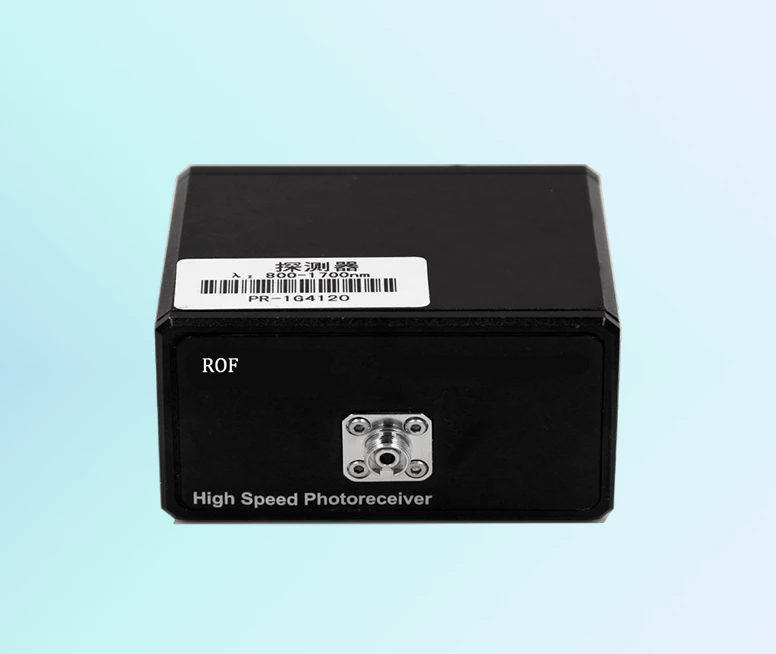

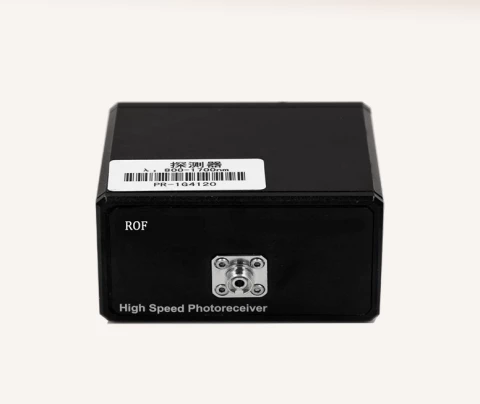

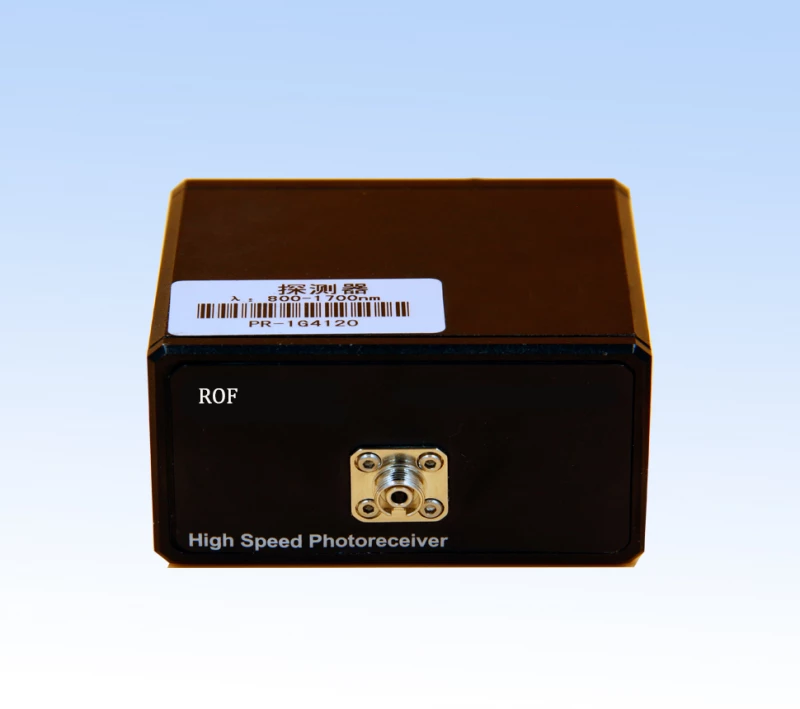

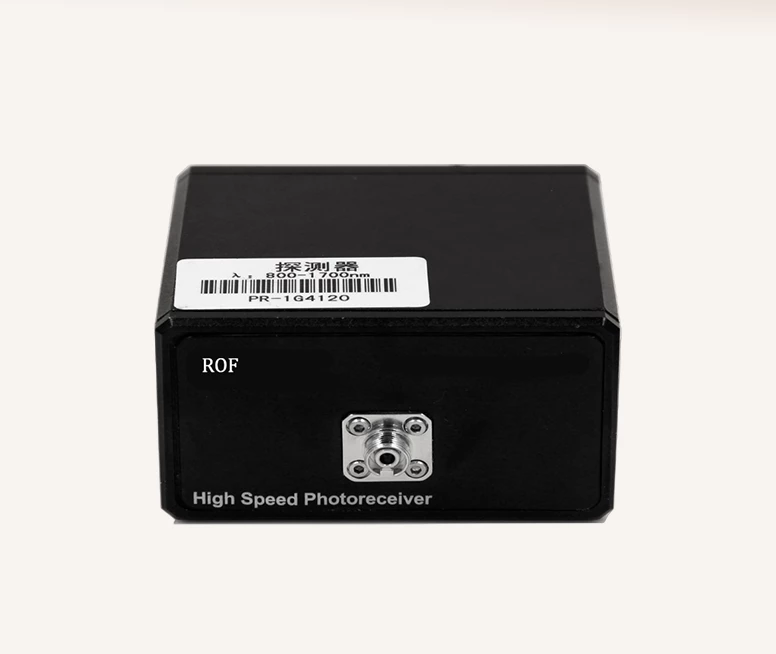

The ROF-PD-10G 10GHz high-speed light detection module uses high-performance 10GHz PIN detector, single-mode / multi-mode fiber coupling input, SMA connector output, having high gain, high sensitivity, DC / AC coupling output, gain flat and other Features, mainly being used in high-speed optical fiber transmission system, ROF and optical fiber sensing systems and other fields.
ROF Avalanche Photodiodes Detector APD Photodetector PIN Photodetector InGaAs Photodetector
Specifications
| Detector Type: | Photodetector |
|---|---|
| Min Power Measurement: | 10 nW |
| Max Power Measurement: | 40 W |
| Spectral Range: | 850 – 1660 nm |
| Display: | Touch screen |
| Communication Interface: | Other |
| Spectral Range: | 850~1650 nm |
| 3dB Bandwidth: | 10 GHz |
| Response Wavelength: | 850 - 1650 nm |
| -3dB Bandwidth: | 10 GHz |
| Dark Circuit: | 10 nA |
| Responsiveness: | 0.8 A/W |
| Rise Time: | 35 ps |
| Polarization Independent Loss: | 0.2 - 0.6 dB |
| Optical Return Loss: | -35 dB |
| Gain: | 40 V/W |
| Electrical Return Loss: | -10 dB |
| Output Impedance: | 50 Ohm |
| Operating Voltage: | DC 5V |
| Dimension: | 100x100x34 mm |
| Input Fiber: | Single-mode/multimode fiber |
| Fiber Connector: | FC/PC, FC/APC |
| Output Connector: | SMA(f) |
| Input Optical Power: | 10 mW |
| Operating Voltage: | 4.5 - 6.5 V |
| Operating Temperature: | -10 to 60 ℃ |
| Storage Temperature: | -40 to 85 ℃ |
| Humidity: | 5 - 90 % |
Download Data Sheet
Features
- Spectral range：850~1650nm
- 3dBbandwidth up to 10GHz
- Optical fiber coupling output
Applications
- High-speed optical pulse detection
- High -speed optical communication
- Microwave link
- Brillouin optical fiber sensing system
Frequently Asked Questions
What is the ROF-PD-10G 10GHz high-speed light detection module used for?
The ROF-PD-10G 10GHz high-speed light detection module is mainly used in high-speed optical fiber transmission systems, ROF, optical fiber sensing systems, and other fields.
What is the spectral range of the ROF-PD-10G module?
The spectral range of the ROF-PD-10G module is 850 to 1650 nm.
What is the 3dB bandwidth of the ROF-PD-10G module?
The 3dB bandwidth of the ROF-PD-10G module is up to 10 GHz.
What type of fiber input does the ROF-PD-10G module support?
The ROF-PD-10G module supports single-mode and multi-mode fiber input.
What are the operating temperature limits for the ROF-PD-10G module?
The operating temperature range for the ROF-PD-10G module is -10 to 60°C.
What is the typical responsiveness of the ROF-PD-10G module at 1550 nm?
The typical responsiveness of the ROF-PD-10G module at 1550 nm is 0.8 A/W.
What are the available connector types for the ROF-PD-10G module?
The available connector types for the ROF-PD-10G module are FC/PC and FC/APC.
