Description
The UD19-150-H5 is a high-performance uncalibrated thermal disk sensor designed for precise laser power measurement applications. It boasts a maximum average power handling capacity of 150 W, making it suitable for various laser power monitoring needs.
With a wide spectral range of 0.19 - 20 μm and a noise equivalent power as low as 1 mW, this sensor offers exceptional sensitivity and accuracy.
The typical rise time of 2.8 seconds ensures rapid and reliable measurements. Whether used in research, industry, or educational settings, the UD19-150-H5 is a valuable tool for laser power measurement.

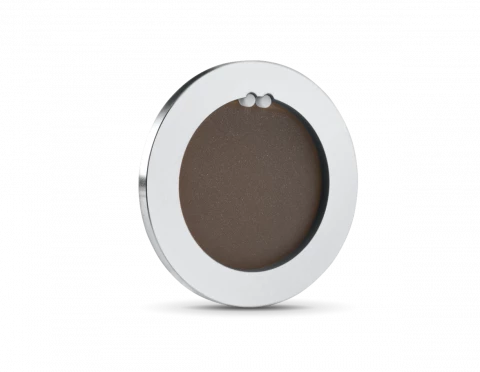

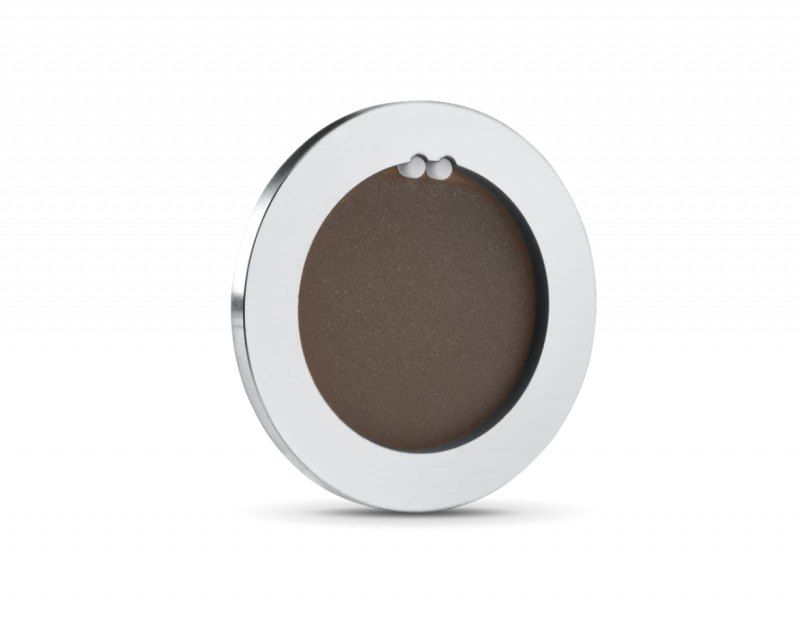

UD19-150-H5 Uncalibrated Thermal Disk Sensor
Specifications
| Max Measurable Energy: | 15000 mJ |
|---|---|
| Max Repetition Rate: | 10 Hz |
| Effective Aperture: | 19 mm |
| Spectral Range: | 0.19 – 20 um |
| Maximum Average Power: | 150 W |
| Maximum Average Power (fan-cooled): | 50 W |
| Noise Equivalent Power: | 1 mW |
| Typical Rise Time: | 2.8 s |
| Typical Power Sensitivity: | 0.65 mV/W |
| Recommended Load Impedance: | 100 kΩ |
| Typical Energy Sensitivity: | 0.65 mV/J |
| Maximum Measurable Energy: | 15 J |
| Noise Equivalent Energy: | 20 mJ |
| Maximum Average Power Density: | 45 kW/cm² |
| Maximum Energy Density: | 1 J/cm² |
| Absorber: | H5 |
| Dimensions: | 44Ø x 3D mm |
| Weight: | 0.007 kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Wide Power Range: Capable of measuring laser power up to 150 W
- Low Noise: Offers a noise equivalent power as low as 1 mW
- Broad Spectral Range: Covers wavelengths from 0.19 to 20 μm
- Fast Response: Typical rise time of 2.8 seconds for rapid measurements
- High Sensitivity: Typical power sensitivity of 0.65 mV/W
- Recommended Load Impedance: 100 kΩ for optimal performance
- Durable Design: Built to withstand laser power levels
Applications
- Precision laser power measurements up to 150 W
- Research, industrial, and educational laser power monitoring
- Compatible with a range of laser systems and applications
Frequently Asked Questions
What is the Gentec-EO UD19-150-H5 thermal sensor disk used for?
What are the different levels of integration offered by Gentec-EO for the UD19-150-H5 thermal sensor disk?
What is the effective aperture of the UD19-150-H5 thermal sensor disk?
What is the maximum average power density of the UD19-150-H5 thermal sensor disk?
What is the noise equivalent power of the UD19-150-H5 thermal sensor disk?
Got more questions? Use the inquiry form to ask the supplier directly.
