UD12-70-H5 Sensor Disk

Name: UD12-70-H5 Sensor Disk
Brand: Gentec-EO
Availability: InStock

Description

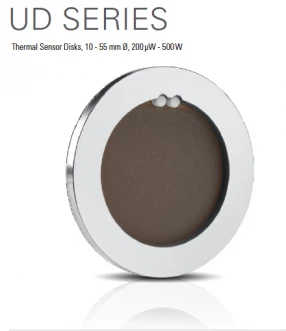

Gentec-EO UD12-70-H5 thermal sensor disk. The Ultra Disks were designed for integration into laser systems. They are the solution if you are engineering the cooling and signal processing into your system already.

The chart in the data sheet show the various Possibilities that Gentec-EO offers to OEM users. The choice of a level of integration depends on your needs in terms of calibration, output signal level, cooling availability, etc.

Specifications

Max Measurable Energy:	5000 mJ
Max Repetition Rate:	14 Hz
Effective Aperture:	12 mm
Spectral Range:	0.19 – 20 um

Download Data Sheet

Features

Designed for Integration

Very Thin Profiles

Various Aperture Sizes

Two Levels of Integration

Name

Work Email

Organization

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

Gentec-EO

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Gentec-EO UD12-70-H5 thermal sensor disk used for?

The Gentec-EO UD12-70-H5 thermal sensor disk is designed for integration into laser systems.

What are the features of the Gentec-EO UD12-70-H5 thermal sensor disk?

The features of the Gentec-EO UD12-70-H5 thermal sensor disk include being designed for integration, having very thin profiles, various aperture sizes, and two levels of integration.

What are the different aperture sizes available for the Gentec-EO UD12-70-H5 thermal sensor disk?

The Gentec-EO UD12-70-H5 thermal sensor disk offers various aperture sizes ranging from 10 mm Ø to 55 mm Ø.

What are the two levels of integration available for the Gentec-EO UD12-70-H5 thermal sensor disk?

The two levels of integration available for the Gentec-EO UD12-70-H5 thermal sensor disk are disk alone and disk + PCB.

What is the maximum average power density of the Gentec-EO UD12-70-H5 thermal sensor disk?

The maximum average power density of the Gentec-EO UD12-70-H5 thermal sensor disk is 36 kW/cm2.
