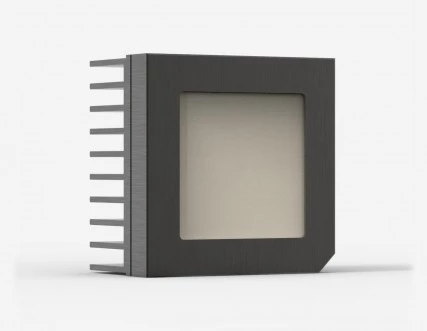

Gentec-EO Pyroelectric Detector QE50SP-H-MT-D0

Name: Gentec-EO Pyroelectric Detector QE50SP-H-MT-D0
Brand: Gentec-EO

Description

The Gentec-EO QE series is a robust line of high performance and high accuracy pyroelectric joulemeters that are designed to measure laser energy. Each modular unit is built for durability, compactness and ease of operation.

The QE optical absorber exhibits high damage thresholds and can operate at high rep-rates. The QE series can be used to even higher energy levels with QED attenuator / diffuser.

Specifications

Max Measurable Energy:	13000 mJ
Max Repetition Rate:	4000 Hz
Effective Aperture:	50 mm
Spectral Range:	0.19 – 20 um

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

The QE series benefits from the use of a DB-15 male, “Smart Interface” connector, containing a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific Q series joulemeter head. This connector permits the Gentec-EO display or PC interfaceo automatically adjust to the characteristics of the joulemeter being connected.

All QE series detectors are also available with the INTEGRA connector. This option only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232 or USB with external trigger.

Every QE series joulemeter features high intrinsic responsivity and high insensitivity to electromagnetic interference.

The QE series also offers an exceptionally wide dynamic range and permits energy measurement from UV to far IR.

The QE series joulemeters are also available as custom products with analog output to be used with an oscilloscope or an OEM acquisition system.

Applications

Laser energy measurements
Laser optics
Spectroscopy
Metrology

Request Quote

To: Gentec-EO
Re: Gentec-EO Pyroelectric Detector QE50SP-H-MT-D0

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: Canada
Sold by:: Gentec-EO ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Gentec-EO QE series used for?

The Gentec-EO QE series is used to measure laser energy.

What is the INTEGRA connector?

The INTEGRA connector is an option that only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, spectral correction factors, and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232, or USB with external trigger.

What is the maximum measurable energy of the QE50SP-H-MT-D0?

The maximum measurable energy of the QE50SP-H-MT-D0 is 213 J.

What is the noise equivalent energy of the QE50SP-H-MT-D0?

The noise equivalent energy of the QE50SP-H-MT-D0 is 10 μJ.

What is the Smart Interface connector?

The Smart Interface connector is a DB-15 male connector that contains a memory chip programmed with the calibration sensitivity, spectral correction factors, and other data relating to the specific QE series joulemeter head. It permits the Gentec-EO display or PC interface to automatically adjust to the characteristics of the joulemeter being connected.
